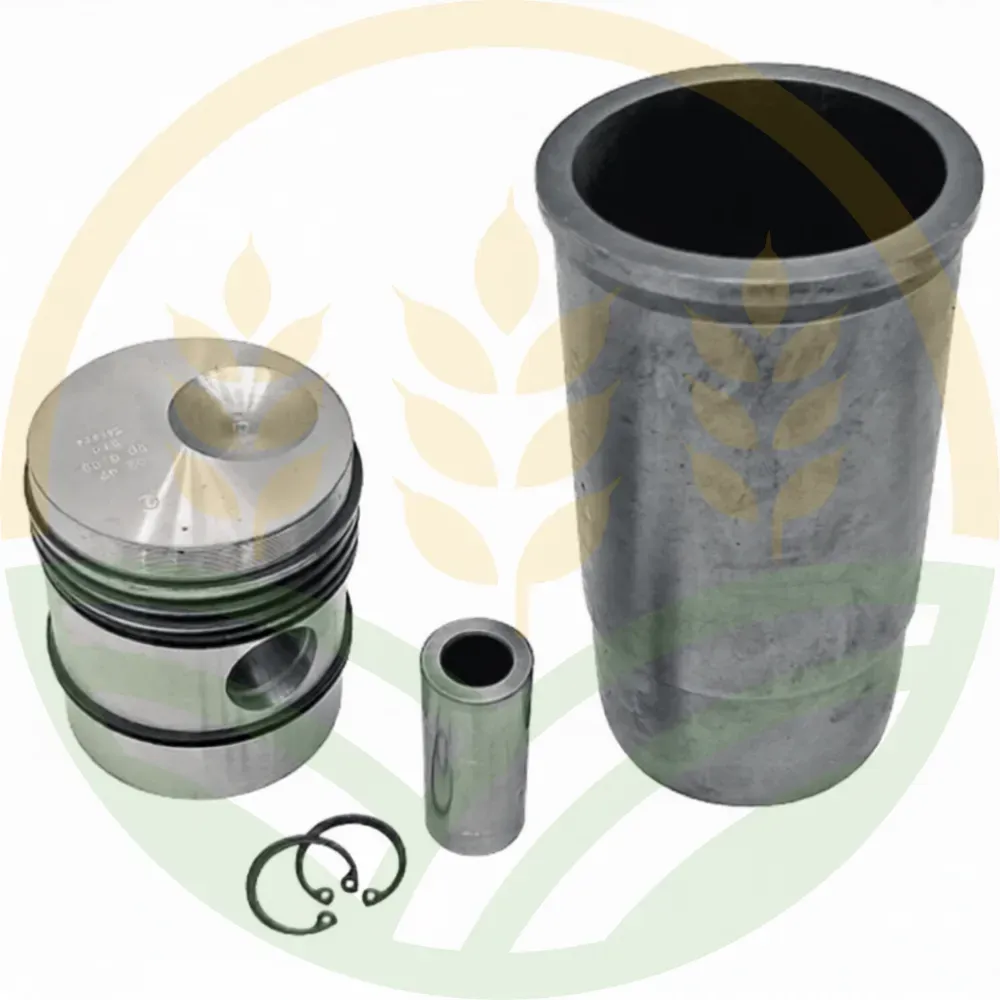

GRANIT Cylinder Liner and Piston Kit for Case IH / IHC (3054295R91) - Ø 82.55 mm

Name: GRANIT Cylinder Liner and Piston Kit for Case IH / IHC (3054295R91) - Ø 82.55 mm
SKU: 38002068
Price: 237 EUR
Availability: InStock

Brand:

Rif.: 38002068

The premium GRANIT complete cylinder liner and piston assembly (orig. ref. 3054295R91) is a professional-grade engine overhaul kit designed primarily for classic Case IH / IHC tractors and engines. The kit includes a high-precision piston featuring a 5-ring configuration for maximum compression sealing, a 28 x 67 mm gudgeon pin, and a matched cylinder liner with a nominal diameter of 82.55 mm and a combustion chamber depth of 5.5 mm. Engineered from heavy-duty thermomechanically resistant alloys, it ensures reliable engine restoration, smooth operation, and optimized oil consumption control.

PLEASE NOTE: The kit is delivered without O-rings (must be ordered separately).

Hurry! only 3 items left in stock.

€237.00 Tax not applicable

Quantity

Add to Compare

Add to Wishlist

Availability: Medium stock

Add to compare Add to wishlist

Security Policies

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policies

Fast and reliable shipping. Orders delivered with care. Various options.

Secure Payments

Secure payments! Transactions are protected by encryption. Your security is guaranteed.

Genuine GRANIT complete cylinder liner and piston assembly for internal combustion engines. A professional-grade engine rebuild kit matched with micrometric tolerances to guarantee optimal compression recovery and thermal efficiency.
Note: Delivery excludes the cylinder liner sealing o-rings.

Product Description

This GRANIT liner and piston assembly (Item code 38002068) is engineered for the heavy overhaul of diesel engines from the Case IH / International Harvester family. The complete kit includes a high-grade replacement cylinder sleeve paired with a durable piston featuring a 28x67 mm gudgeon pin and a heavy-duty 5-ring setup. This complex multi-ring layout dramatically limits blow-by, reduces oil consumption, and secures steady oil film management during extreme field duty. The piston head contains a 5.5 mm deep combustion bowl to ensure superior fuel atomization, air-swirl mixing, and optimal engine displacement behavior.

Technical Data and Specifications

Product	Complete Cylinder Liner and Piston Assembly (Engine Rebuild Kit)
Bore (Piston/Liner Ø)	82.55 mm
Piston Ring Configuration	5-ring set (compression, scraper, and oil rings)
Piston Pin Dimensions (Ø x L)	28 mm x 67 mm
Combustion Chamber Bowl Depth	5.5 mm
Original Cross Reference (OEM Ref.)	3054295R91 (Case IH / IH)
Total Kit Weight	2.86 kg
EAN Code	4250808736540
Item Code	38002068
