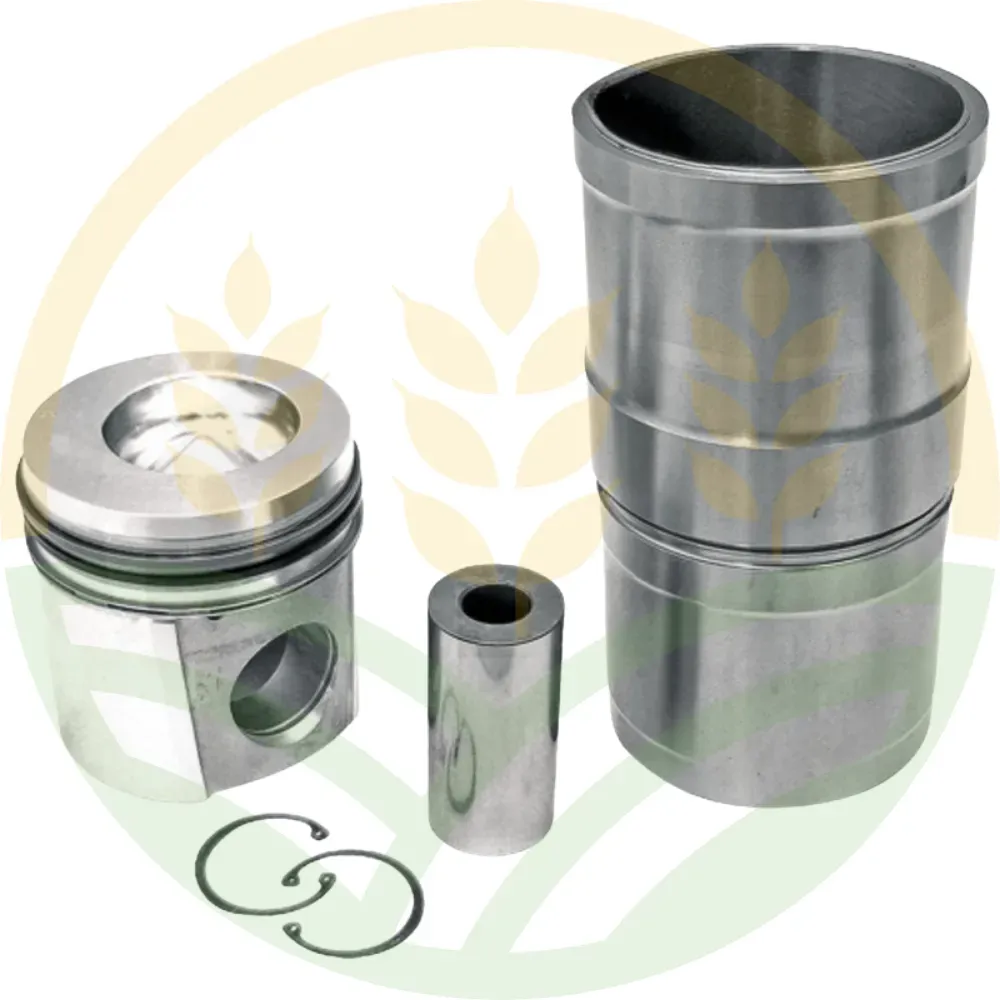

Cylinder Liner and Piston Kit for Case IH (A77799) - Ø 114 mm (6 mm Wall)

Name: Cylinder Liner and Piston Kit for Case IH (A77799) - Ø 114 mm (6 mm Wall)
SKU: 38002948
Price: 258.23 EUR
Availability: OutOfStock

Brand:

Rif.: 38002948

The premium complete cylinder liner and piston assembly (part number 38002948) is a professional engine overhaul kit for Case IH / IHC. It features a 3-ring piston with a 45 mm pin, 66.5 mm combustion chamber (21.5 mm depth), and 1 mm fire ring. The matched liner has a 6 mm reinforced wall and 114 mm bore.

PLEASE NOTE: Delivered without O-rings.

Out of Stock

€258.23 Tax not applicable

Quantity

Add to Compare

Add to Wishlist

Availability: Processable in approximately 1-2 working days

Add to compare Add to wishlist

Security Policies

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policies

Fast and reliable shipping. Orders delivered with care. Various options.

Secure Payments

Secure payments! Transactions are protected by encryption. Your security is guaranteed.

Genuine GRANIT complete cylinder liner and piston kit for high-horsepower agricultural and industrial engines. A professional grade engine overhaul assembly matched with micro-tolerances, engineered with a reinforced wall to handle heavy thermo-mechanical stress and rebuild proper cylinder compression levels.
Note: Delivery excludes the cylinder liner sealing o-rings.

Product Description

The GRANIT complete cylinder sleeve and piston kit (Item code 38002948) is a heavy-duty engine rebuild assembly developed for high-performance diesel engines operating under severe stress conditions. This specific kit stands out due to its extra-reinforced cylinder sleeve with a robust 6 mm wall thickness, perfect for high structural load distribution. It comes paired with a durable 114 mm piston running a specialized 3-ring layout and a 1 mm fire ring, engineered to control oil film friction, handle extreme heat, and prevent internal gas blow-by. The piston crown features an advanced 66.5 mm diameter combustion bowl with a depth of 21.5 mm, maximizing the air-fuel mixing swirl and direct injection efficiency to return optimal horsepower output, structural torque, and dependable fuel economy to the rebuilt engine block.

Technical Data and Specifications

Product	Complete Cylinder Liner and Piston Assembly (Engine Overhaul Kit)
Bore (Piston/Liner Ø)	114 mm
Liner Wall Thickness	6 mm
Piston Ring Configuration	3-ring pack (with a 1 mm fire ring)
Piston Pin Diameter (Ø)	45 mm
Combustion Chamber Bowl Profile	Ø 66.5 mm \| Depth: 21.5 mm
Original References (OEM Ref.)	A77799, IA77799
Total Kit Weight	7.37 kg
Item Code	38002948
