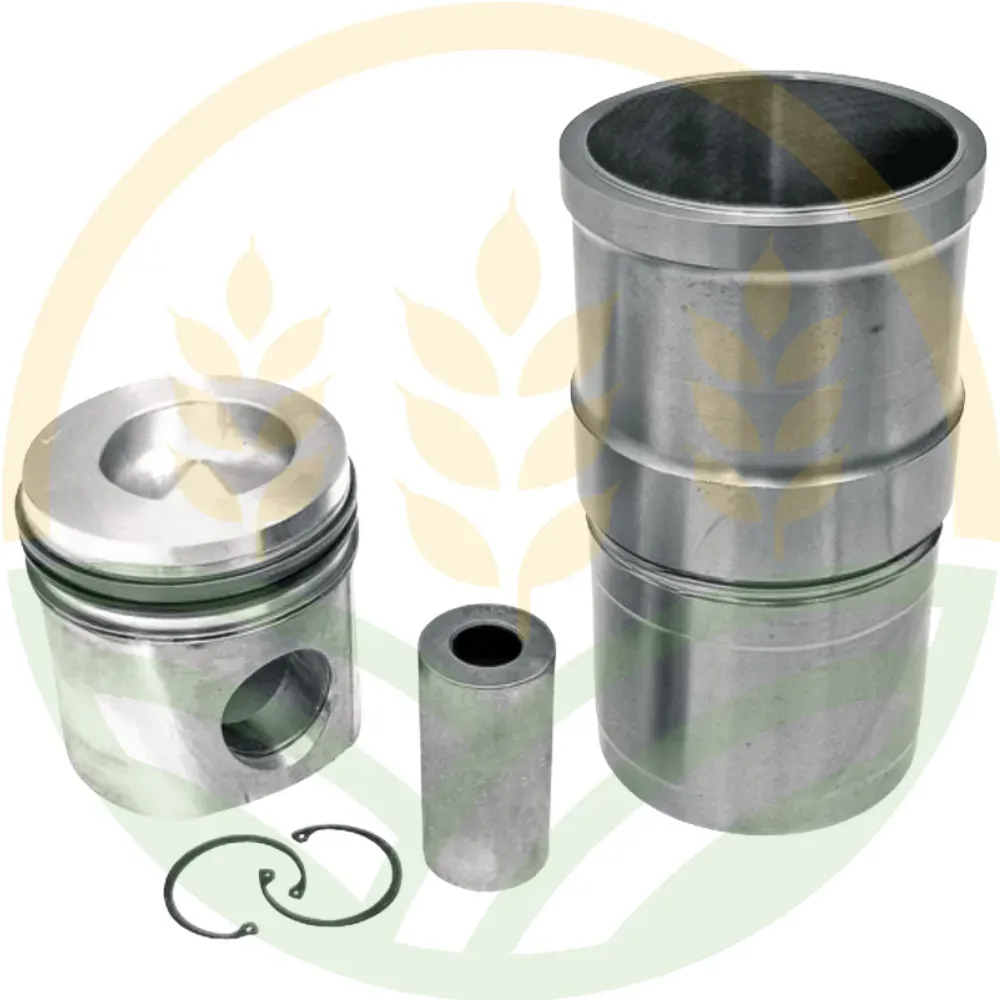

Cylinder Liner and Piston Kit for Case IH (A77774) - Ø 114 mm

Name: Cylinder Liner and Piston Kit for Case IH (A77774) - Ø 114 mm
SKU: 38002944
Price: 919.99 EUR
Availability: OutOfStock

Brand:

Rif.: 38002944

PRODUCT TEMPORARILY OUT OF STOCK

The premium complete cylinder liner and piston assembly (part number 38002944) is a professional-grade engine overhaul kit engineered for heavy-duty Case IH / IHC agricultural machinery, including Magnum, Steiger, and Axial-Flow series. This kit features a high-precision piston equipped with a 3-ring configuration, a 45 mm gudgeon pin, a 66.5 mm diameter combustion chamber bowl with a depth of 21.5 mm, and a 1 mm fire ring. The matched cylinder liner is designed with a 4 mm wall thickness and a nominal bore diameter of 114 mm. Built from advanced, heat-resistant metal alloys, it delivers superior compression sealing and reliable durability under high-stress field operations.

Out of Stock

€919.99 Tax not applicable

Quantity

Add to Compare

Add to Wishlist

Availability: Out of stock

Add to compare Add to wishlist

Security Policies

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policies

Fast and reliable shipping. Orders delivered with care. Various options.

Secure Payments

Secure payments! Transactions are protected by encryption. Your security is guaranteed.

Genuine GRANIT complete cylinder liner and piston kit for high-horsepower agricultural and industrial engines. A professional grade engine overhaul assembly matched with micro-tolerances, engineered to handle heavy thermo-mechanical stress and rebuild proper cylinder compression levels.

Product Description

The GRANIT complete cylinder sleeve and piston kit (Item code 38002944) is a heavy-duty engine rebuild assembly developed specifically for high-performance diesel engines powering Case IH agricultural machinery (such as Magnum, Steiger tractor series, and Axial-Flow combine harvesters). The comprehensive kit features a reinforced engine cylinder sleeve with a 4 mm wall thickness paired with a durable 114 mm piston running a 3-ring layout and a 1 mm fire ring, engineered to optimize oil film friction and prevent internal gas blow-by. The piston crown features an advanced 66.5 mm diameter combustion bowl with a depth of 21.5 mm, maximizing the air-fuel mixing swirl and direct injection efficiency to return optimal horsepower output, structural torque, and dependable fuel economy to the rebuilt engine block.

Technical Data and Specifications

Product	Complete Cylinder Liner and Piston Assembly (Engine Overhaul Kit)
Bore (Piston/Liner Ø)	114 mm
Liner Wall Thickness	4 mm
Piston Ring Configuration	3-ring pack (with a 1 mm fire ring)
Piston Pin Diameter (Ø)	45 mm
Combustion Chamber Bowl Profile	Ø 66.5 mm \| Depth: 21.5 mm
Brand Compatibility	Case IH (International Harvester)
Compatible Series & Applications	AF Series (Axial-Flow), Magnum Series, Steiger Series
Original References (OEM Ref.)	A77774, IA77774
Total Kit Weight	7.36 kg
Item Code	38002944
