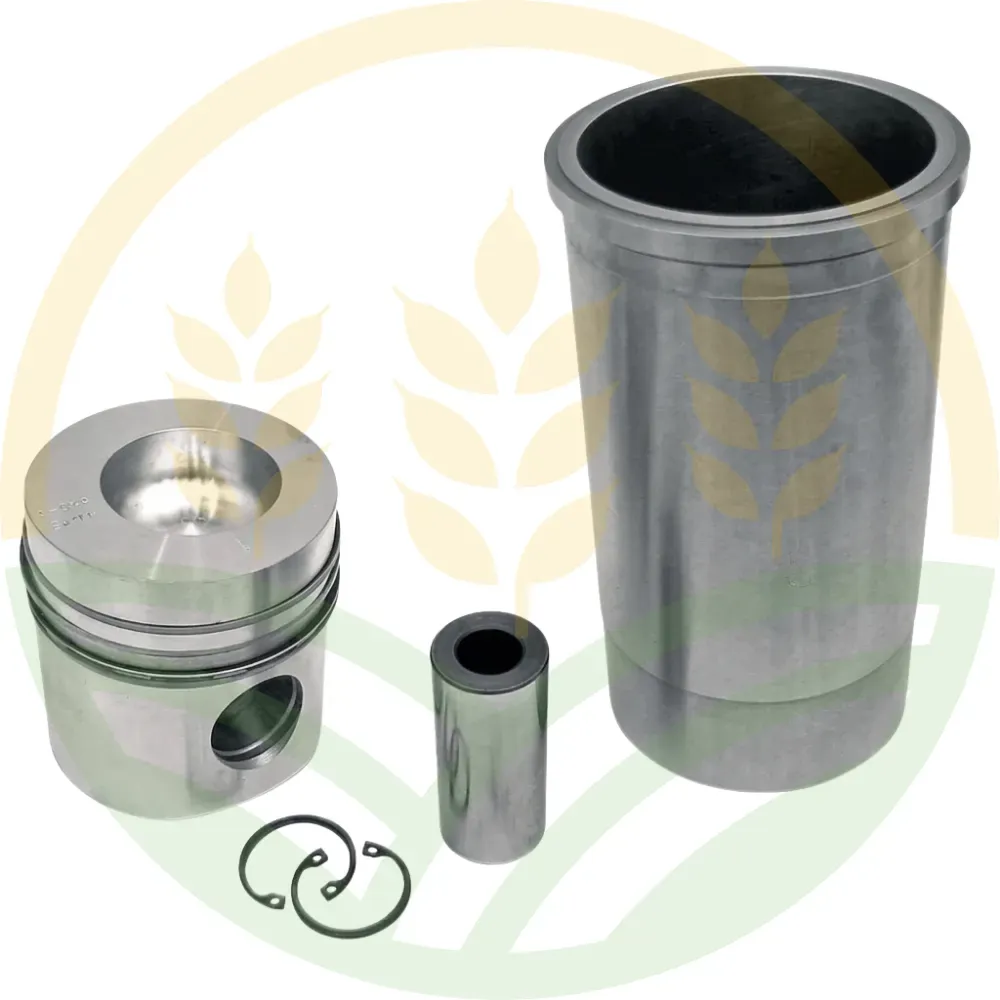

Cylinder Liner and Piston Kit for Case IH (3218668R94) - Ø 100 mm

Name: Cylinder Liner and Piston Kit for Case IH (3218668R94) - Ø 100 mm
SKU: 38002074
Price: 160 EUR
Availability: InStock

Brand:

Rif.: 38002074

The premium complete cylinder liner and piston assembly (part number 38002074) is an engine overhaul kit for British-built Case IH / IHC engines. It features a 3-ring piston with a 36x82 mm pin, 57.5 mm combustion chamber (22.3 mm depth), and 1 mm fire ring. Matched liner bore is 100 mm.

PLEASE NOTE: Delivered without O-rings.

Hurry! only 1 items left in stock.

€160.00 Tax not applicable

Quantity

Add to Compare

Add to Wishlist

Availability: Low stock

Add to compare Add to wishlist

Security Policies

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policies

Fast and reliable shipping. Orders delivered with care. Various options.

Secure Payments

Secure payments! Transactions are protected by encryption. Your security is guaranteed.

Genuine GRANIT complete cylinder liner and piston kit for agricultural and industrial engines. A high-precision replacement kit engineered with strict technical tolerances to guarantee flawless compression recovery and maximize thermal efficiency.
Note: Delivery excludes the cylinder liner sealing o-rings.

Product Description

The GRANIT cylinder sleeve and piston setup (Item code 38002074) is a professional engine overhaul assembly designed specifically for Case IH / International Harvester diesel engines from the classic British-built series. This heavy-duty kit features a high-grade cylinder sleeve paired with a precision-machined 100 mm piston running a balanced 3-ring layout and a 1 mm fire ring, engineered to tightly control oil film friction and prevent internal gas blow-by. The piston crown features an advanced 57.5 mm diameter combustion bowl with a depth of 22.3 mm, maximizing the air-fuel mixing swirl and direct injection efficiency to return optimal horsepower output, structural torque, and dependable smooth operation to the rebuilt engine block.

Technical Data and Specifications

Product	Complete Cylinder Liner and Piston Assembly (Engine Overhaul Kit)
Nominal Bore (Piston/Liner Ø)	100 mm
Piston Ring Configuration	3-ring pack (with a 1 mm fire ring)
Piston Pin Dimensions (Ø x L)	36 mm x 82 mm
Combustion Chamber Bowl Profile	Ø 57.5 mm \| Depth: 22.3 mm
Engine / Machine Compatibility	Case IH (International Harvester) - British Build Series / British Baureihe
Compatible Tractor Series	42 Series, 85 Series, 95 Series, 200 Series, B-Family, Hydro Series
Main Original Reference	3218668R94
Total Kit Weight	4.75 kg
Item Code	38002074
