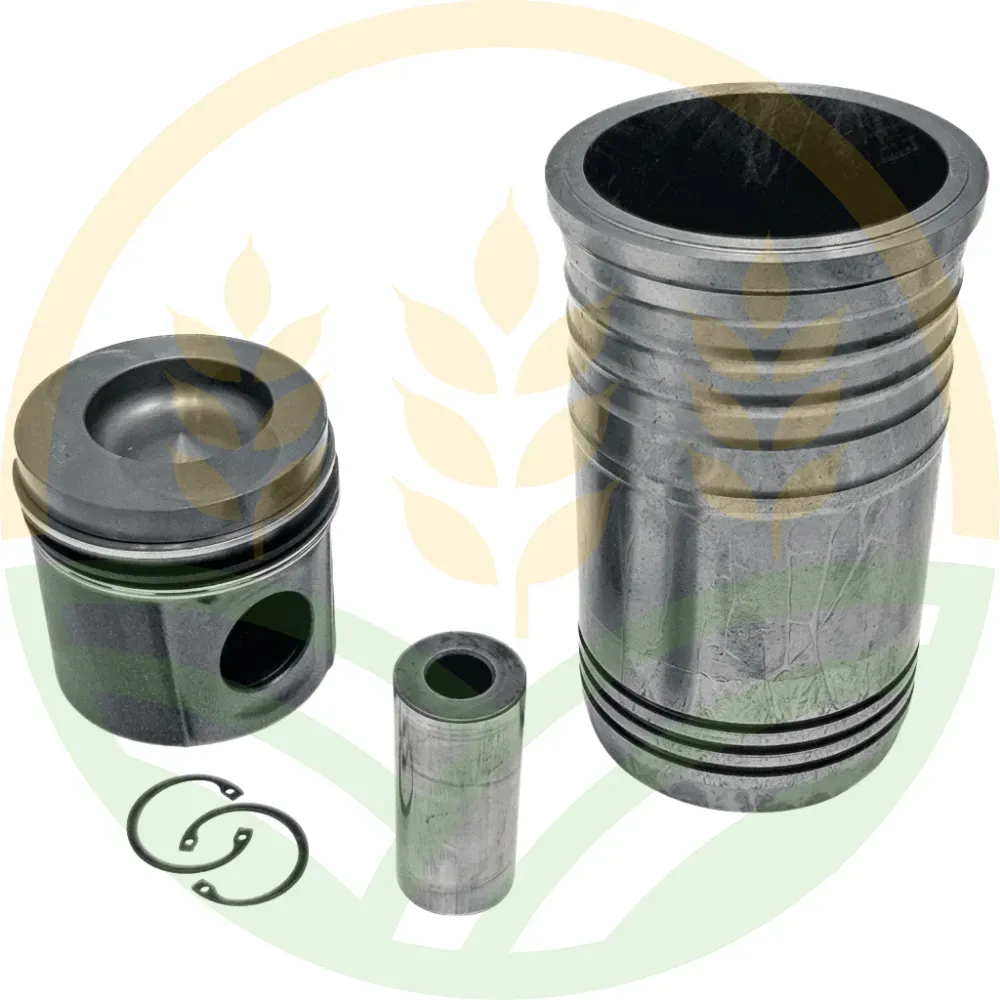

⚠ Info Immagine: The image is for demonstration purposes only and may not represent the exact appearance of the product.

Cylinder Liner and Piston Kit for Case IH / Steyr / Sisu - Ø 108 mm

Name: Cylinder Liner and Piston Kit for Case IH / Steyr / Sisu - Ø 108 mm
SKU: 380002001
Price: 190 EUR
Availability: InStock

Brand:

Rif.: 380002001

The premium complete cylinder liner and piston assembly (part number 380002001) is an engine overhaul kit for Case IH, Steyr, and Sisu. It features a 108 mm liner and a high-precision 3-ring piston with a 40 mm pin, 64.50 mm combustion chamber diameter (19 mm depth), and 1 mm fire ring. Fits CS, CVX, CVT, TVT, and M9000 tractor series.

PLEASE NOTE: Delivered without O-rings.

Hurry! only 2 items left in stock.

€190.00 Tax not applicable

Quantity

Add to Compare

Add to Wishlist

Availability: Low stock

Add to compare Add to wishlist

Security Policies

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policies

Fast and reliable shipping. Orders delivered with care. Various options.

Secure Payments

Secure payments! Transactions are protected by encryption. Your security is guaranteed.

Genuine GRANIT complete cylinder liner and piston kit for high-performance agricultural and industrial engines. A professional grade engine overhaul assembly matched with micro-tolerances, engineered to handle heavy thermo-mechanical stress and rebuild proper cylinder compression levels.
Note: Delivery excludes the cylinder liner sealing o-rings.

Product Description

The GRANIT complete cylinder sleeve and piston assembly (Item code 380002001) is a heavy-duty engine rebuild kit developed specifically for the technical overhaul of high-performance diesel engines powering Case IH, Steyr, and New Holland heavy agricultural tractors (especially optimized for Sisu / Sisu Diesel engine builds). The comprehensive kit features a highly durable cylinder sleeve paired with a precision-machined 108 mm piston running a balanced 3-ring layout and a 1 mm fire ring, engineered to optimize oil film friction and tightly prevent internal gas blow-by. The piston crown features an advanced 64.50 mm diameter combustion bowl with a depth of 19 mm, maximizing the air-fuel mixing swirl and direct injection efficiency to return optimal horsepower output, structural torque, and dependable fuel economy to the rebuilt engine block.

Technical Data and Specifications

Product	Complete Cylinder Liner and Piston Assembly (Engine Overhaul Kit)
Bore (Piston/Liner Ø)	108 mm
Piston Ring Configuration	3-ring pack (with a 1 mm fire ring)
Piston Pin Dimensions (Ø x L)	40 mm x 88.70 mm (nominal spec up to 90 mm)
Combustion Chamber Bowl Profile	Ø 64.50 mm \| Depth: 19 mm
Brand Fitment Compatibility	Case IH, Steyr, New Holland (Sisu Engine applications)
Main Compatible Tractor Series	• Case IH / Steyr CS & CVX Series: CS 68, CS 75, CS 78, CS 80, CS 80 Pro, CS 86, CS 90, CS 90 Pro, CS 94, CS 100, CS 120, CS 130, CS 150, CVX 120, CVX 130, CVX 1135, CVX 1145 • Steyr CVT, M 900 & M 9000 Series: 6135 CVT, 6145 CVT, CVT 120, CVT 130, M 968, M 975, 9080 M, 9090 M, 9100 M, M 9078, M 9086, M 9094 • Steyr / Case IH 9100 & 9000 MT Series: 9105, 9115, 9125, 9145, 9080 MT, 9090 MT, 9100 MT • New Holland TVT Series: TVT 135, TVT 145
Main Original References (OEM)	V836640073, V836640126, V836673191, 354138A1, 47108347
Other Cross References (OEM)	162000040763 + 162000030700
Total Kit Weight / EAN Code	6.39 kg / 4250808736496
Item Code	380002001
