⚠ Info Immagine: The image is for demonstration purposes only and may not represent the exact appearance of the product.

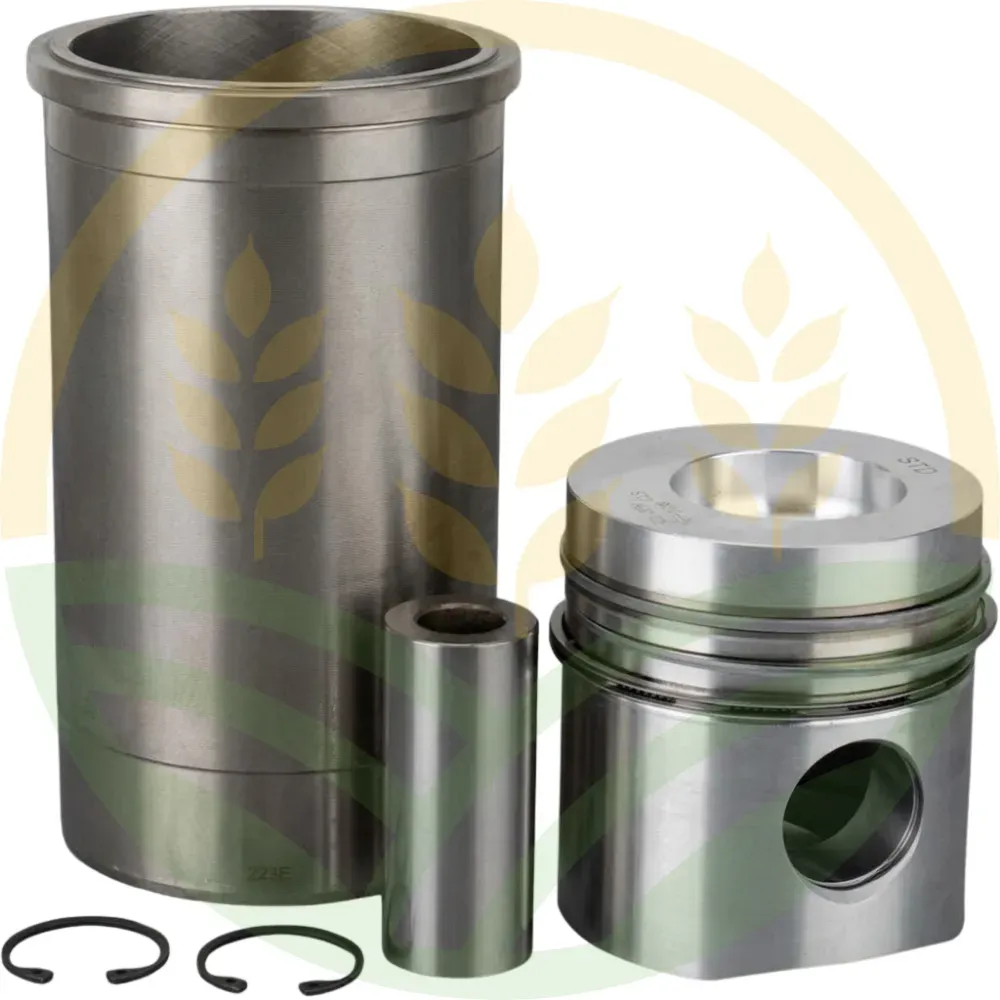

The premium complete cylinder liner and piston assembly (part number 38002063) is an engine overhaul kit for Case IH / IHC. It features an insert piston with 3 rings, a 36x82 mm pin, 55 mm combustion chamber (19.9 mm depth), and 1 mm fire ring. The liner bore is 98.43 mm.
PLEASE NOTE: Delivered without O-rings.
Genuine GRANIT complete cylinder liner and piston kit for agricultural engines. A high-precision overhaul assembly matched with micrometric tolerances and a reinforced ring-carrier insert piston to maximize thermal efficiency and restore engine compression. Note: Delivery excludes the cylinder liner sealing o-rings.
| Product | Complete Cylinder Liner and Piston Assembly (Engine Overhaul Kit) |
| Nominal Bore (Piston/Liner Ø) | 98.43 mm |
| Piston Features | Equipped with ring groove insert | 3-ring set (1 mm fire ring) |
| Piston Pin Dimensions (Ø x L) | 36 mm x 82 mm |
| Combustion Bowl Profile | Ø 55 mm | Depth: 19.9 mm |
| Engine / Machine Compatibility | Case IH (International Harvester) - British build line / British Baureihe |
| Compatible Tractor Series | 8-xx Series, A-Family, B-Family, C-Family |
| Kit Composition Breakdown | Cylinder liner and matching piston (Single items: 88892150, 90769600) |
| Main Original References | 90769960, 3139586R95 |
| Cross Reference List (OEM) | 3055019R2, 3136844R91, 3136844R92, 3138883R91, 3138884R92, 3139586R91, 3139586R94, 3228559R1, 3218758R95, 3055337R91, 3055337R92, 3055337R93, 3055337R94, 3132300R1, 3132300R2, 3132301R91, 3132301R92, 3138666R1, 3138884R91, 3139586R92, 3139586R93 |
| Total Kit Weight / EAN Code | 4.95 kg / 4250808736458 |
| Item Code | 38002063 |
The GRANIT cylinder liner and piston setup (Item code 38002063) is a professional engine rebuild assembly engineered specifically for Case IH / International Harvester diesel engines from the classic British-built series. The comprehensive kit features a high-grade replacement cylinder sleeve paired with a durable 98.43 mm piston running a balanced 3-ring layout (including a 1 mm fire ring) and an armored Alfin-type ring groove insert to resist groove pounding under continuous thermodynamic stress. The piston crown features an advanced 55 mm diameter combustion bowl with a depth of 19.9 mm, boosting the air-fuel mixing ratio and injection turbulence. This multi-component configuration guarantees an airtight gas seal, preventing blow-by and oil-burning to restore original torque and dependable field performance.
