GRANIT Cylinder Liner & Piston Kit Ø102mm | Agrokron

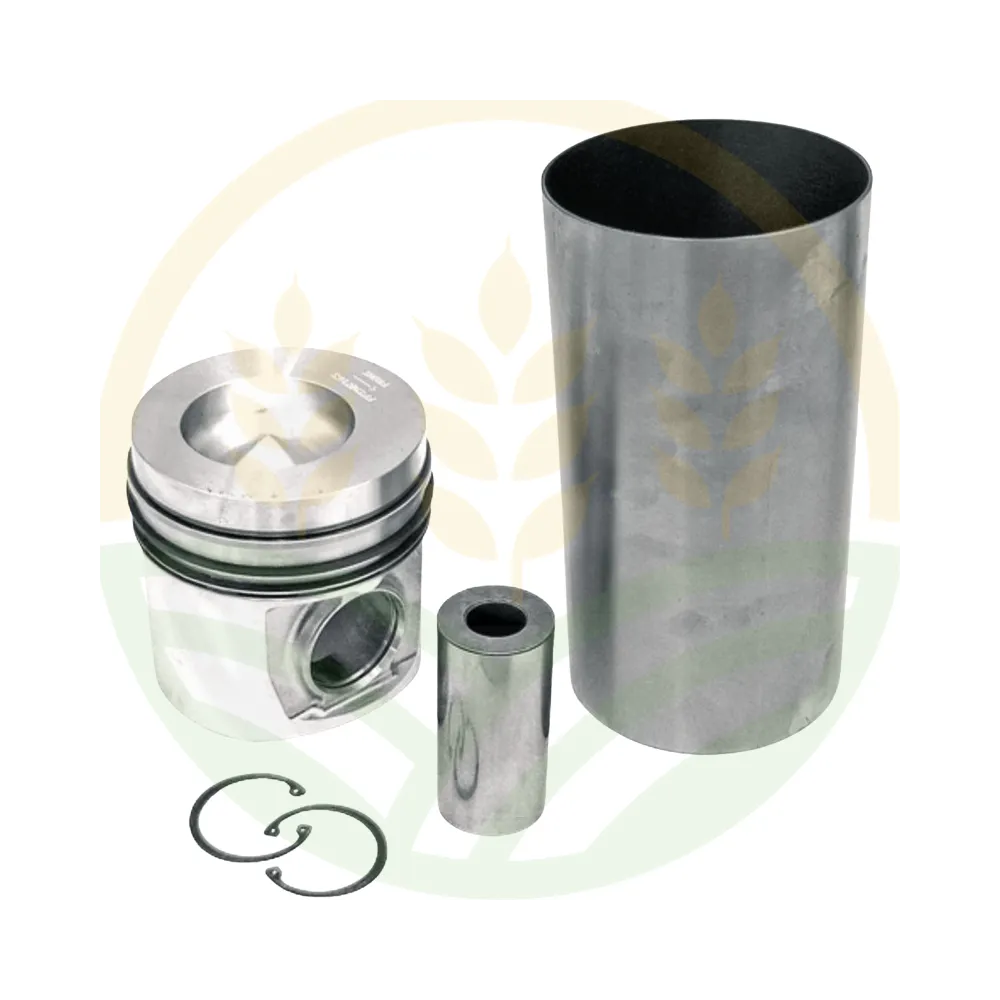

⚠ Info Immagine: The image is for demonstration purposes only and may not represent the exact appearance of the product.

Cylinder Liner and Piston Kit for Case IH (J904166) - Ø 102 mm (Dry Sleeve)

Name: Cylinder Liner and Piston Kit for Case IH (J904166) - Ø 102 mm (Dry Sleeve)
SKU: 38002927
Price: 187 EUR
Availability: OutOfStock

Brand:

Rif.: 38002927

The premium complete cylinder liner and piston assembly (part number 38002927) is a professional-grade engine overhaul kit engineered for Case IH / IHC heavy-duty applications, including Maxxum, MX, Axial-Flow, and XT series. The kit features a high-precision matched dry cylinder liner (dry sleeve) with a 102 mm bore and a robust piston configuration containing 3 piston rings, a 40 mm gudgeon pin, and a 59 mm diameter combustion chamber bowl. Built from high-grade, heat-resistant metal alloys, it guarantees superior compression sealing and outstanding long-term engine reliability under intensive agricultural operations.

PLEASE NOTE: This kit is delivered without O-rings.

Out of Stock

€187.00 Tax not applicable

Quantity

Add to Compare

Add to Wishlist

Availability: Processable in approximately 1-2 working days

Add to compare Add to wishlist

Security Policies

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policies

Fast and reliable shipping. Orders delivered with care. Various options.

Secure Payments

Secure payments! Transactions are protected by encryption. Your security is guaranteed.

Genuine GRANIT complete cylinder liner and piston kit for industrial and agricultural engines. A heavy-duty engine overhaul assembly featuring dry sleeve technology, matched with precision tolerances to guarantee maximum compression recovery.
Note: Delivery excludes the cylinder liner sealing o-rings.

Product Description

The GRANIT dry liner and piston kit (Item code 38002927) is an OEM-quality engine rebuild assembly engineered to meet the rigid field demands of Case IH machinery and compatible Cummins engine systems. The setup consists of a high-grade replacement dry cylinder sleeve paired with a durable 102 mm piston running a performance 3-ring layout, designed to tightly control oil film scraping and minimize compression gas bypass. The piston crown features an advanced 59 mm diameter combustion bowl, boosting the air-fuel mixing swirl and direct injection efficiency to return optimal horsepower output and structural smooth operation to the engine block.

Technical Data and Specifications

Product	Complete Cylinder Liner and Piston Assembly (Engine Overhaul Kit)
Bore (Piston/Liner Ø)	102 mm
Liner Design	Dry sleeve / Dry cylinder liner
Piston Ring Configuration	3 piston rings
Piston Pin Diameter (Ø)	40 mm
Combustion Chamber Bowl Profile	Ø 59 mm
Brand Compatibility	Case IH (Maxxum, MX, Axial-Flow series), Cummins
Compatible Series & Applications	96 Series, 1000 Series, 2000 Series, AF Series (Axial-Flow), Maxxum Series, MX Series, Patriot Sprayer Series, SP Series, SPX Series, XT Series
Original References (OEM Ref.)	J904166, A77733, A77727, F2229372, P2229372, A77518, 153648773, 3904166, 4593904166, 75287931, 75311237, 76191922
Total Kit Weight	4.94 kg
Item Code	38002927
