⚠ Info Immagine: The image is for demonstration purposes only and may not represent the exact appearance of the product.

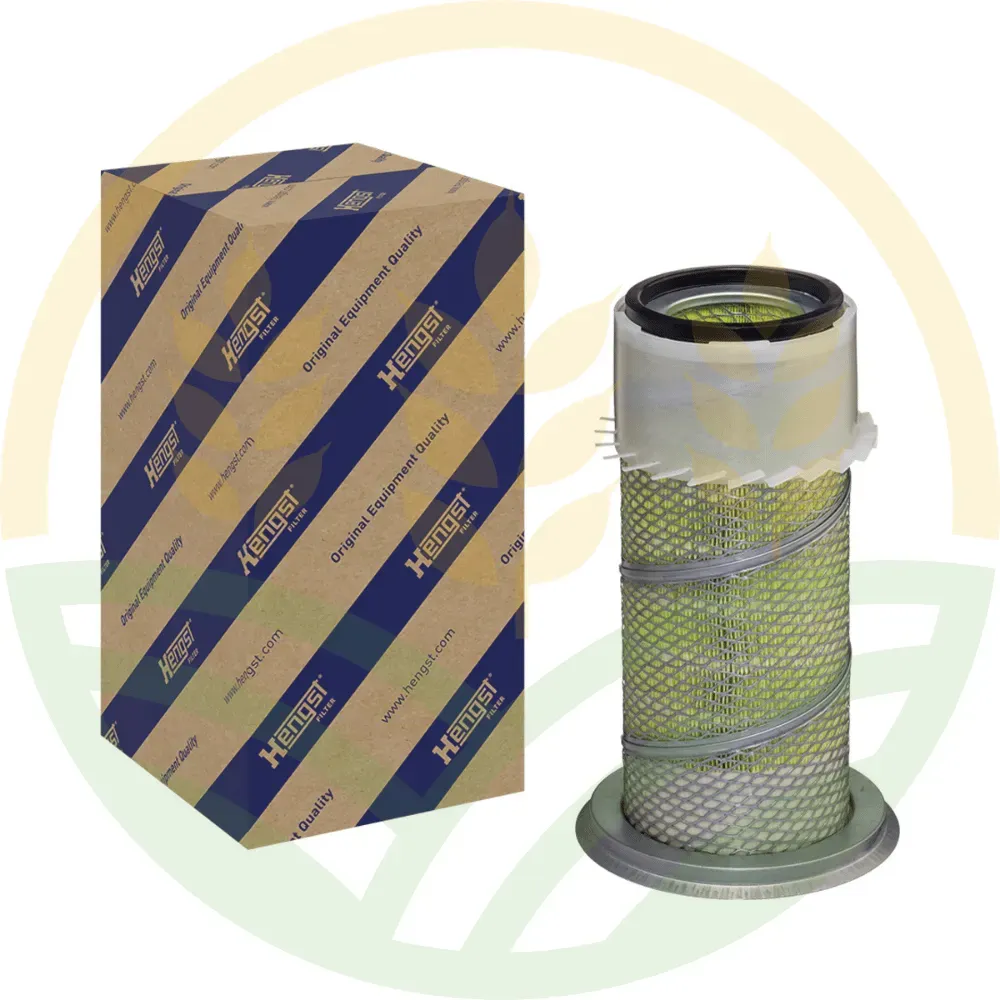

Premium outer primary air filter manufactured by Hengst Filter, engineered to capture heavy dust and impurities, ensuring maximum engine protection and longevity. Technical specifications: height 392 mm, outer diameter 213 mm, inner diameter 86 mm, net weight 1.838 kg. Highly compatible with agricultural and construction machinery including SDF brands (SAME, Deutz-Fahr, Lamborghini, Hürlimann), Massey Ferguson, Case IH, JCB, Komatsu, and Caterpillar. Direct replacement for OEM part numbers SDF 2.4249.131.0, Massey Ferguson 3310355M91, JCB 32/903601, and Case IH T1950555.
Fits SDF and one more brand
E1596LGenuine Hengst Filter (E1596L) primary air filter cartridge (Outer). Heavy-duty high-performance filter element featuring a height of 392 mm, an outer diameter of 213 mm, and a net weight of 1.838 kg. Engineered for maximum protection of heavy-duty engines in agricultural, construction, and industrial fields.
| Manufacturer Code | E1596L |
| Filter Type | Primary Air Filter Cartridge (Outer Element) |
| Height (H) | 392 mm |
| Outer Diameter (A) | 213 mm |
| Inner Diameter (B) | 86 mm |
| Net Weight | 1.838 kg |
| Key OE Cross References | SAME / DEUTZ-FAHR / LAMBORGHINI / HÜRLIMANN: 2.4249.131.0, 2.4249.300.0 | MASSEY FERGUSON: 3310355M91, 3909235M1 | CASE IH / NEW HOLLAND: T1950555, P1950555 | CATERPILLAR: 1006845 | JCB: 32/903601, JLH100 | KOMATSU: 203-01-K1130 | FIAT / HITACHI: 1930765, 79072797 |
The Hengst E1596L filter cartridge represents an exceptional solution for air intake filtration systems on large agricultural tractors and earthmoving machinery. Built with a high-capacity pleated filter media and featuring a structural net weight of 1.838 kg, this primary outer filter ensures a perfect geometric seal and outstanding vibration resistance. It effectively traps fine dust, sand, and abrasive particles before they can reach the intake manifold and combustion chamber, preserving engine efficiency, reducing cylinder and valve wear, and maintaining stable fuel consumption even under the most demanding operating conditions.
Highly compatible primary filter specifically engineered for the following brands and sectors: Agricultural Tractors & Machinery: SAME (Explorer, Antares, Dorado, Silver, Laser, Tiger, Panther, etc.), LAMBORGHINI (Agile, Formula, Grand Prix, Premium, R2, R4), HÜRLIMANN (XA, XT, H-Series), DEUTZ-FAHR (Agrolux, Agroplus, Agrotron), MASSEY FERGUSON (3000, 3300, 3400 Series), CASE IH (Maxxum). Excavators & Earthmoving: KOMATSU (PC Series), JCB (CX Backhoes, 400 Series Wheel Loaders), FIAT-HITACHI, CATERPILLAR, POCLAIN, BENATI, ATLAS WEYHAUSEN. Industrial Vehicles & Compressors: RENAULT V.I., INGERSOLL-RAND, ATLAS COPCO, VOLVO.
SDF: Filtro primario ad altissima compatibilità specifico per i seguenti settori e marchi:
Case IH: Trattori e Macchine Agricole
SDF: Escavatori e Movimento Terra, HITACHI, POCLAIN, BENATI, ATLAS WEYHAUSEN
SDF: Veicoli Industriali e Compressori: V.I, INGERSOLL-RAND, ATLAS COPCO
No model with this name in the list.
Can't find your tractor? Send us the model and serial number: we will check. Check with us
| Code | E1596L Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Hengst |
| Category | SDF (Air Filters) |
| Weight | 1,9 Kg |
