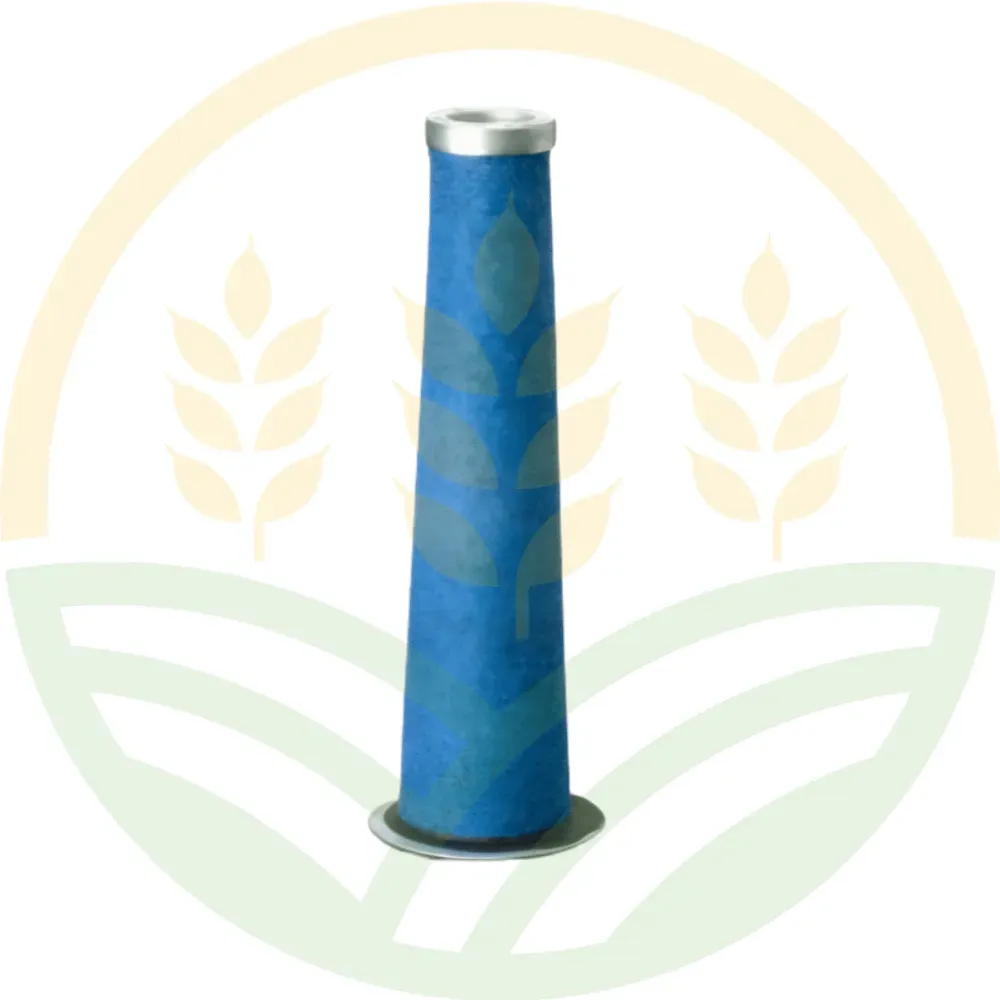

Secondary Safety Air Filter Element | Donaldson P770398
Genuine Donaldson secondary safety air filter. Engineered to act as a crucial backup, protecting the engine from dust and contaminants during primary filter service or in case of primary element damage. Technical dimensions: outer diameter 92.46 mm, inner diameter 61 mm, length 282.96 mm. Widely compatible with agricultural equipment including SAME (Explorer, Argon, Solar, Frutteto, Centauro series), Lamborghini (Crono), Hürlimann, Agrifull, and AGCO. Direct replacement for OEM part numbers SDF 2.4249.340.2 / 2.4249.390.2, Fiat / New Holland 1930442, and AGCO 72270881.
Fits Hürlimann Series 361 and 5 more brands · 12 models · See all ↓
P770398
- Fast and tracked deliveriesthroughout Europe
- Easy returnswithin 14 days
- Secure paymentPayPal & cards
Genuine Donaldson (P770398) secondary safety air filter (Inner). Round cylindrical element featuring a height of 282.96 mm, a maximum outer diameter of 92.46 mm, and a minor diameter of 50.04 mm. Designed to act as an absolute backup barrier and safeguard the engine during primary filter maintenance.
Technical data and specifications
| Manufacturer Code | P770398 |
| Filter Type / Style | Safety Filter (Inner) / Round |
| Length | 282.96 mm (11.14 in) |
| Outer Diameter | 92.46 mm (3.64 in) |
| Inner Diameter | 61.00 mm (2.40 in) |
| Minor Outer Diameter (DO minore) | 50.04 mm (1.97 in) |
| Efficiency Test Standard | ISO 5011 |
| Key OE Interchange Codes | SAME / DEUTZ-FAHR: 2.4249.340.2, 2.4249.390.2 | FIATAGRI / CASE IH / NEW HOLLAND: 1930442, NP1930442 | AGCO: 72270881 | CATERPILLAR: 3I1417 |
Key Macro-Applications
Highly compatible inner safety filter certified for the following brands and series: Agricultural Tractors & Machinery: SAME: Argon (50, 60), Explorer (55, 60, 70, 75C Ergomatic), Frutteto (60 DT), Solar 50, Aster 60, Corsaro 70, Mercury 85, Vigneron (60, 75), and 60 II series. AGCO: 4000 Series (4650, 4660), 5000 Series (5650), 6000 Series (6045, 6065, 6670). AGRIFULL: 50 Series (50, 50DT, 55CF, 55CV, 55DT, 55DTT). HÜRLIMANN TRACTORS: 361 Series (F, V, XF), 468, 468.4, H 305 XE, H 306 XE, H 358 Prestige, H 358.4, H 468.4. LAMBORGHINI: Crono 564-60DTA.
Why choose Donaldson
- Donaldson safety filters perform crucial functions to protect the engine block in heavy-duty environments:
- Backup filtration: They function as a reserve filter, blocking debris in case of damage or improper installation of the main primary filter.
- Maintenance protection: They prevent ambient contaminants from entering the clean side of the air intake system while servicing or removing the primary filter.
- Early alerting: They are engineered to plug rapidly if contamination bypasses the primary cartridge, reducing performance to immediately alert operators to a system issue.
- Service interval: It is recommended to replace safety filters every three primary filter changes, unless a primary filter breakdown has occurred.
Compatibility 12 models
Same 4 models
- Solar 50
- Aster 60
- Corsaro 70
- Mercury 85
Argon, Explorer, Frutteto, Vigneron, e serie 60 II
AGCO · Serie 4000
AGCO · Serie 5000
AGCO · Serie 6000
Agrifull · Serie 50
Hürlimann · Serie 361
Hürlimann 7 models
- 468
- 468.4
- H 305 XE
- H 306 XE
- H 358 Prestige
- H 358.4
- H 468.4
Lamborghini
- Crono 564-60DTA
Other notes
SDF: Filtro di sicurezza interno di elevata compatibilità specifico per i seguenti marchi e serie:
No model with this name in the list.
Can't find your tractor? Send us the model and serial number: we will check. Check with us
Product sheet
| Code | P770398 Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Donaldson |
| Category | SDF (Air Filters) |
| Weight | 0,3 Kg |
Delivery times
They depend on where the product is. If you see the «Standard» and «Urgent» buttons on the page, the item is ordered directly from the manufacturer and you choose the speed.
The product is in our warehouse and ships right away: delivery takes 24/48 working hours from shipment. You can also collect it from us.
Ordered from the manufacturer with standard logistics, at the listed price.
Top priority: shipped in about 2-3 working days, with a surcharge calculated automatically.
