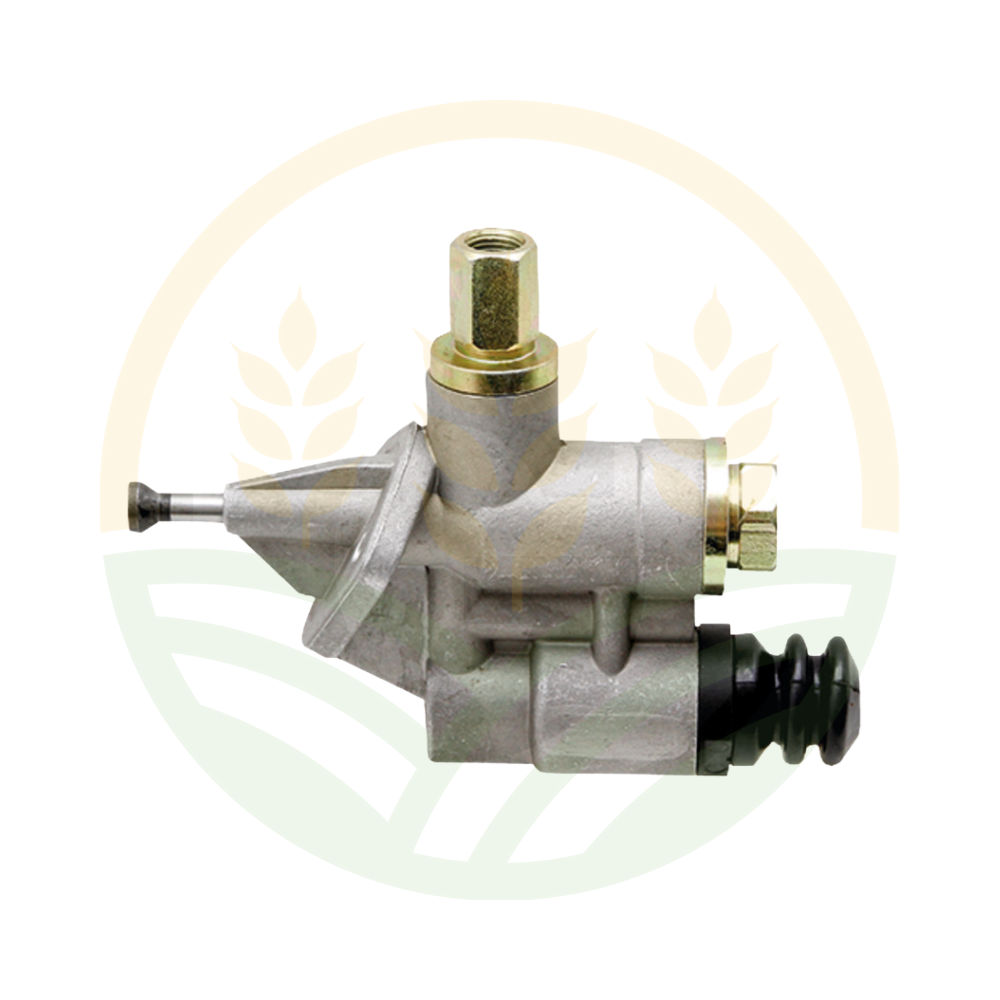

87473337 Fuel Pump for Case IH Tractors
Product Code: 87473337
Original References: I87473337, 87473337, J936318, J917998
Features: This fuel pump is an essential component of the engine fuel system, responsible for drawing fuel from the tank and delivering it under pressure to the injection system. It features a two-hole design with a 45 mm spacing and a 56 mm measurement from the flange to the lever end, ensuring precise fit and secure installation. The 1/4" - 18 NPTF threaded connection makes it compatible with standard piping.
Dimensions: Number of Holes: 2
Hole spacing: 45 mm
Flange to lever end: 56 mm
Thread: 1/4" - 18 NPTF
Main Applications: This fuel pump is an essential replacement for several Case IH tractor and construction machinery models, particularly those equipped with Cummins engines.
Compatible CASE IH Models: Cummins Engines: 6T-830, 6TA-830, 4-390, 6-590, 6T-590, 6TA-590
Series 96: 1896, 2096
Series 1000: 1840
Series AF (Axial-Flow): 1660, 1666, 1670, 1680, 2166
Series Magnum: Magnum 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250
Series Steiger: Steiger 9110 (7/89-8/90), 9110 (12/86-6/89), 9130 (7/89-8/90), 9130 (12/86-6/89), 9210 (9/90-5/95), 9230 (9/90-5/95), 9240 (10/90-10/94), 9310, 9330
Series XT: 85XT, 90XT, 95XT
| Code | 38002494 Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Aftermarket |
| Category | Fuel Lift Pumps |
| Weight | 0,9 Kg |
