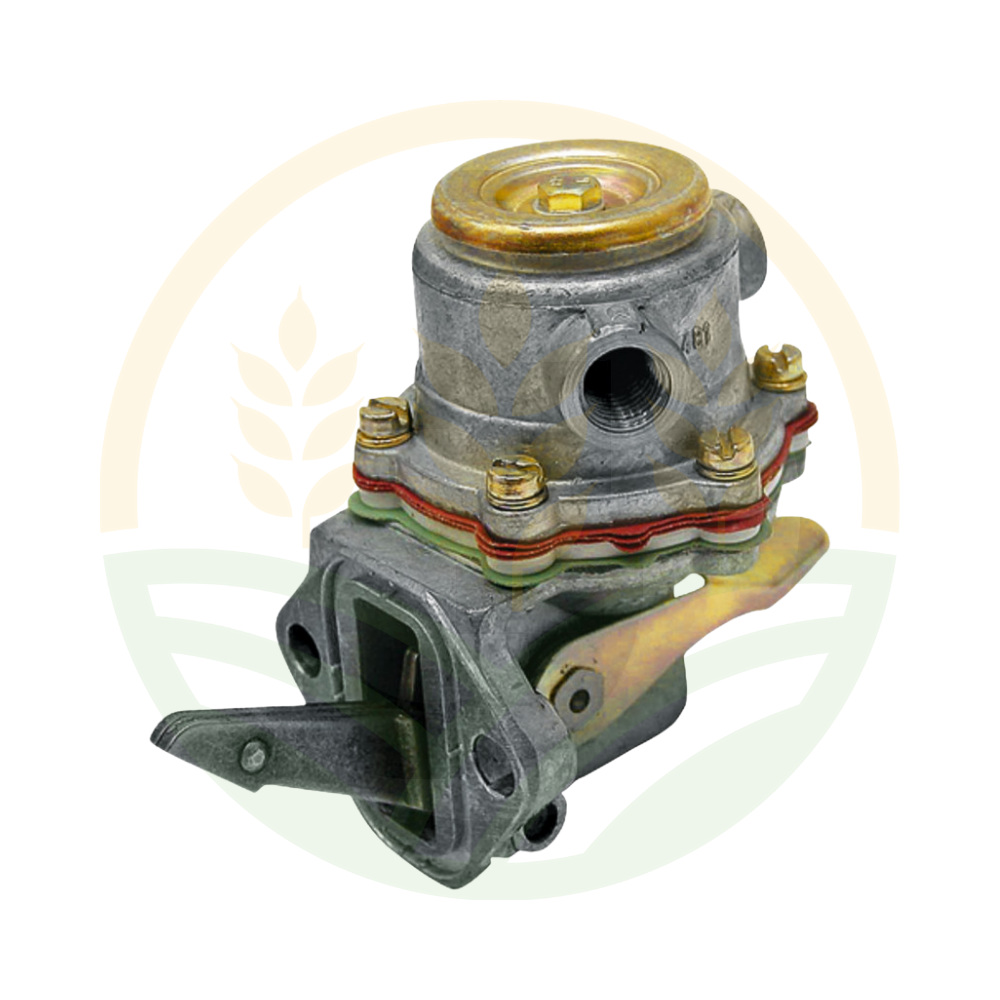

4757883 Fuel Feed Pump for Fiat Agri, Case IH, Ford, and New Holland Tractors
Fits Fiat 8025.01, 8025.02 (+11) and 4 more brands · 171 models · See all ↓
Product Code: 4757883 Original References: 504090935, 4757883, 4740717 Features: This fuel feed pump is an essential component of the engine's fuel system. With a 2-hole mounting configuration, a hole spacing of 45 mm, and a measurement of 38 mm from the flange to the end of the lever, it ensures a precise and secure installation. Designed to provide a constant and reliable fuel flow, it is crucial for the correct operation of the engine under various operating conditions.
| Number of Holes | 2 |
| Hole Spacing | 45 mm |
| Flange to End of Lever | 38 mm |
| FIAT AGRI | |
| Fiat/Iveco Engines | 8025.01, 8025.02, 8035.01, 8035.02, 8035.04, 8035.05, 8035.06, 8045.01, 8045.02, 8045.04, 8045.05, 8045.06, 8045.25 |
| 46 Series | 55-46, 60-46, 65-46 |
| 56 Series | 55-56, 60-56, 70-56 |
| 66 Series | 45-66, 45-66 S, 50-66, 50-66 S, 55-66, 56-66 S, 60-66, 60-66 F, 60-66 S, 65-66, 65-66 S, 70-66, 70-66 F, 70-66 LP, 70-66 S, 80-66, 80-66 F, 80-66 S, 466, 566, 666 |
| 76 Series | 45-76 V, 55-76 F, 55-76 V, 60-76 F, 70-76 F, 70-76 LP, 70-76 V, 80-76 F |
| 80 Series | 580, 680, 780, 880, 980, 1180 |
| 86 Series | 50-86 S V, 50-86 V, 55-86 F, 55-86 S V, 55-86 V, 60-86 F, 60-86 S V, 60-86 V, 62-86 F, 70-86 S V, 70-86 V, 72-86 F, 72-86 LP, 82-86 F, 82-86 LP |
| 88 Series | 55-88, 60-88, 65-88, 70-88, 80-88 |
| 90 Series | 55-90, 60-90, 65-90, 70-90, 80-90, 85-90 |
| 93 Series | 60-93, 65-93, 72-93, 82-93, 88-93 |
| 94 Series | 60-94, 65-94, 72-94, 82-94, 88-94 |
| 355-955 Series | 355, 555 |
| L Series | L 60, L 65, L 75, L 85, L 95 |
| Nastro D'Oro Series | 350, 400, 450, 480, 500, 540, 550, 600, 640 |
| TK Series: 55-65 F, 55-65 M, 55-65 V, 55-75 F, 55-75 M, 55-75 V, 55-85 F, 55-85 M, 55-85 V, 60-65, 60-65 M, 60-65 V, 60-75, 60-75 M, 60-75 V, 60-85 F, 60-85 V, 62-85, 62-85 M, 70-65, 70-65 M, 70-75, 70-75 M, 72-85, 72-85 M, 80-65, 80-75, 82-85, 85-55, 88-85, 95-55 | |
| CASE IH | |
| Iveco/FPT Engines | 8035, 8045 |
| JX Series | JX 55, JX 65, JX 85 |
| JXN Series | JX 1095 N |
| JXU Series | JX 70U, JX 80U, JX 90U, JX 100U |
| JXV Series | JX 1095 V |
| FORD | |
| 30 Series | 3830, 4030, 4230, 4430 |
| 35 Series | 3435, 3935, 4135, 4635, 4835, 5635, 6635, 7635 |
| NEW HOLLAND | |
| TD Series | TD55D, TD65D, TD75D, TD85D, TD95D |
| TL Series | TL70, TL80, TL90, TL100 |
| TN Series | TN80, TN90, TN95 |
Main Applications: This fuel feed pump is an indispensable replacement part for a wide range of tractors from the brands Fiat Agri, Case IH, Ford, and New Holland, particularly for models equipped with Fiat/Iveco engines.
Fiat: AGRI
No model with this name in the list.
Can't find your tractor? Send us the model and serial number: we will check. Check with us
| Code | 38019476 Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Aftermarket |
| Category | Fuel Lift Pumps |
| Weight | 0,36 Kg |
