⚠ Info Immagine: The image is for demonstration purposes only and may not represent the exact appearance of the product.

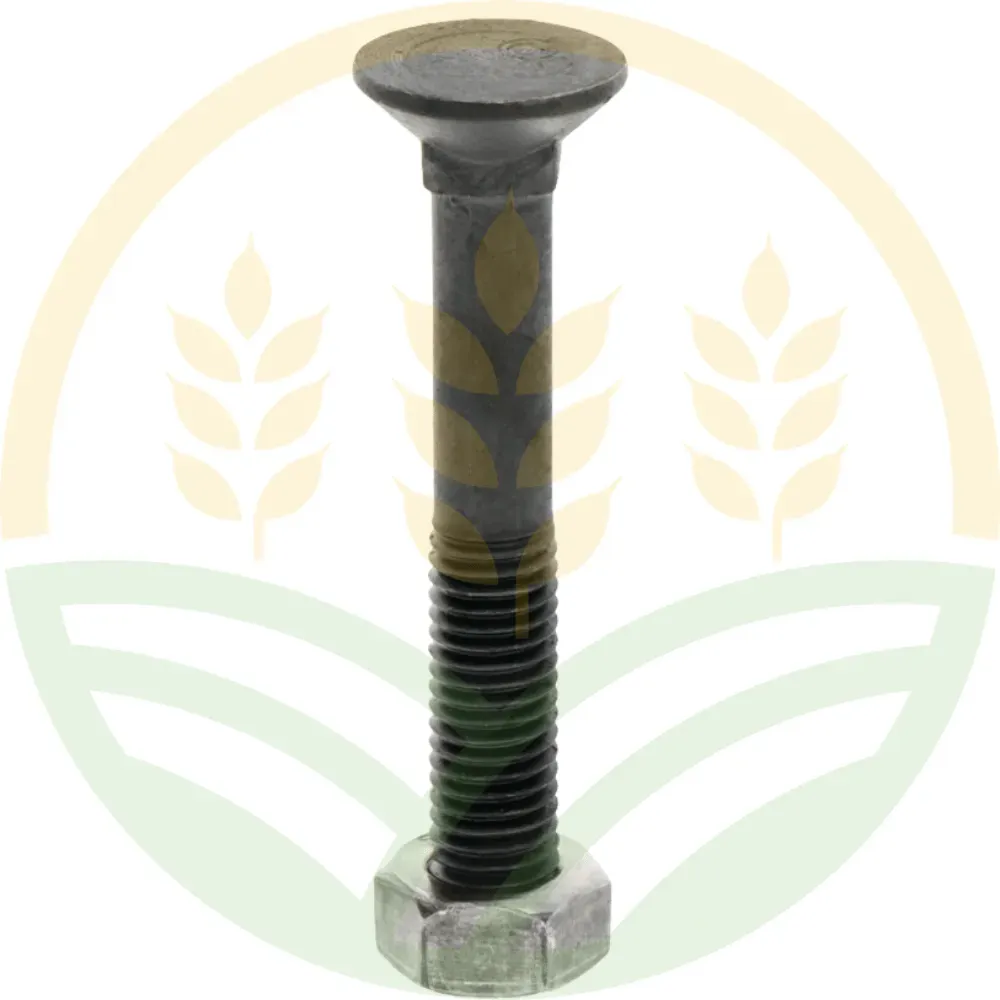

The GRANIT M12x70 plow bolt with nut (Item Code 1871270810/25, Menke Code 33412) is an ultra-high-strength fastener engineered for securing heavy-duty components on plows and soil cultivation equipment. Manufactured from property class 10.9 steel with a tensile strength of 1000 N/mm², it delivers maximum holding power under severe mechanical loads. Compliant with DIN 608 standards, it features an M12 thread (1.75 pitch), 70 mm length, and 24 mm round head with a square neck. Compatible with Amazone (KG, TL series) and Lemken (Smaragd, Thorit) machinery. Supplied in a 25-piece pack with nuts.
Fits Amazone Series KG and TL (+1) and one more brand · See all ↓
GRANIT Plough Bolts M12x70 DIN 608 (Pack of 25) with Nuts - Item Code: 1871270810/25. Professional pack of 25 high-strength plow bolts featuring a countersunk round head with an under-head square neck complying with DIN 608 standards, complete with matching nuts. Made of grade 10.9 steel with a tensile strength of 1000 N/mm² and M12x1.75 thread, offering high compatibility with Amazone and Lemken agricultural machinery.
| Product Type | Plough bolt with nut |
| Item Code | 1871270810/25 |
| Menke Code | 33412 |
| Standard Specification | DIN 608 |
| Diameter (Ø D) & Thread | M12 (Pitch: 1.75) - Standard thread |
| Length (L) | 70 mm |
| Head Diameter (Ø) | 24 mm |
| Quality & Material | Grade 10.9 / Steel |
| Tensile Strength | 1000 N/mm² |
| Head Shape | Round with under-head square neck |
| Sales Unit (Package) | 25 pieces (nuts included) |
| This component is commonly used on the following agricultural machinery models and series: | |
| Amazone | KG series (e.g., KG 03-2), TL series (e.g., VE 251, 301, 401 / TL 251, 301, 401), VG series (e.g., VG 30) |
| Lemken | Smaragd (Smaragd 7, Smaragd 9), Thorit (Thorit 8, Thorit 9, Thorit 10) |
| Operation and Safety Warning | |
| Caution: Use wrenches of the correct size and follow recommended tightening torques for grade 10.9 fasteners. Periodically check bolt tightness on equipment subject to heavy vibration and continuous operational stress | |
Questo componente è comunemente impiegato sui seguenti modelli e serie di macchine agricole:
Lemken: Smaragd, Thorit
Avvertenze per l'Uso e la Sicurezza
Attenzione: Utilizzare chiavi della misura corretta e rispettare le coppie di serraggio consigliate per elementi di fissaggio in classe 10,9. Verificare periodicamente il serraggio delle viti su attrezzature soggette a forti vibrazioni e stress operativi continui
No model with this name in the list.
Can't find your tractor? Send us the model and serial number: we will check. Check with us
| Code | 1871270810/25 Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Granit |
| Category | Countersunk Square Neck Plow Bolts |
| Weight | 2,15 Kg |
