GRANIT M12x45 Plough Bolt DIN 608 Grade 10.9 | Agrokron

⚠ Info Immagine: The image is for demonstration purposes only and may not represent the exact appearance of the product.

GRANIT M12x45 Plough Bolt DIN 608 Grade 10.9 | Agrokron
GRANIT M12x45 Plough Bolt DIN 608 Grade 10.9 | Agrokron

Plow Bolt M12x45 Class 10.9 DIN 608

star star star star star_border
Brand:
Rif.: 1801245810

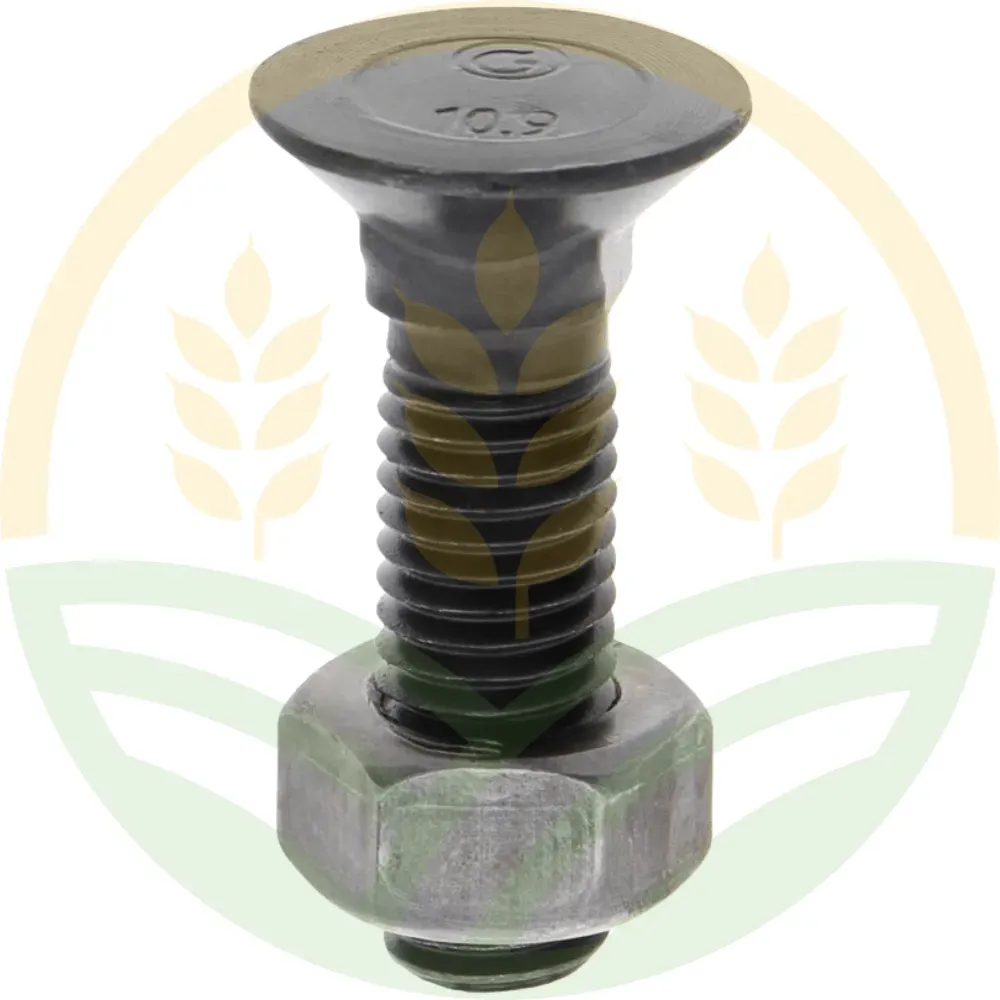

The GRANIT M12x45 plow bolt (Item Code 1801245810, EAN 4250808773927, Menke Code 22531) is an ultra-high-strength fastener engineered for securing heavy-duty components on plows and agricultural machinery. Manufactured from steel with property class 10.9 and a tensile strength of 1000 N/mm², it delivers maximum holding power under severe mechanical loads. Compliant with DIN 608 standards, it features an M12 thread with a 1.75 pitch, 45 mm length, and a 24 mm round head with a square neck to prevent turning during tightening. Unit weight: 55 g.

Hurry! only 500 items left in stock.
€1.60 Tax not applicable
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
Disponibilità immediata per pz. Quantità extra ordinabile. Out of stock Available on order Low stock Medium stock High availability
Availability: High availability
Add to compare Add to wishlist
Security Policies
Security Policies

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policies
Shipping Policies

Fast and reliable shipping. Orders delivered with care. Various options.

Secure Payments
Secure Payments

Secure payments! Transactions are protected by encryption. Your security is guaranteed.

GRANIT Plow Bolt M12x45 DIN 608 (High Strength 10.9) - Item Code: 1801245810. Special plow bolt manufactured by GRANIT, made of ultra-high strength steel with property class 10.9 and countersunk square head. Ideal for the secure fastening of plow shares, points, and high-stress components.
Features and Benefits
  • High-Strength Steel (10.9): Ensures exceptional tensile strength ($1000 \text{ N/mm}^2$) to withstand severe field stress conditions.
  • Square Neck Design: The square under the head prevents the bolt from turning during tightening, facilitating installation on plow bodies and plates.
  • DIN 608 Standard: Engineered in compliance with technical standards for a perfect fit and reliable clamping.
  • EAN Code: 4250808773927
Technical Data and Specifications
Product Type Plow bolt with countersunk square head
Item Code 1801245810
Original Reference (OEM) 1801245810
Menke Code 22531
Thread & Pitch M12 x 1.75 (Standard)
Length 45 mm
Diameter (Ø D) / Head Ø 12 mm / Head Ø 24 mm
Quality / Strength 10.9 (Tensile strength: $1000 \text{ N/mm}^2$)
DIN Standard / Head Type DIN 608 / Round head with square neck
Material Steel
Weight 55 g
Applications and Compatibility

Specifically indicated for mounting points, shares, and high-wear components on plows and agricultural implements requiring dedicated factory fasteners.

Important Mounting Warning

Caution: Do not tighten bolts and nuts with an impact air wrench, as this can damage the parts and cause dangerous tension cracks in the material.
