⚠ Info Immagine: The image is for demonstration purposes only and may not represent the exact appearance of the product.

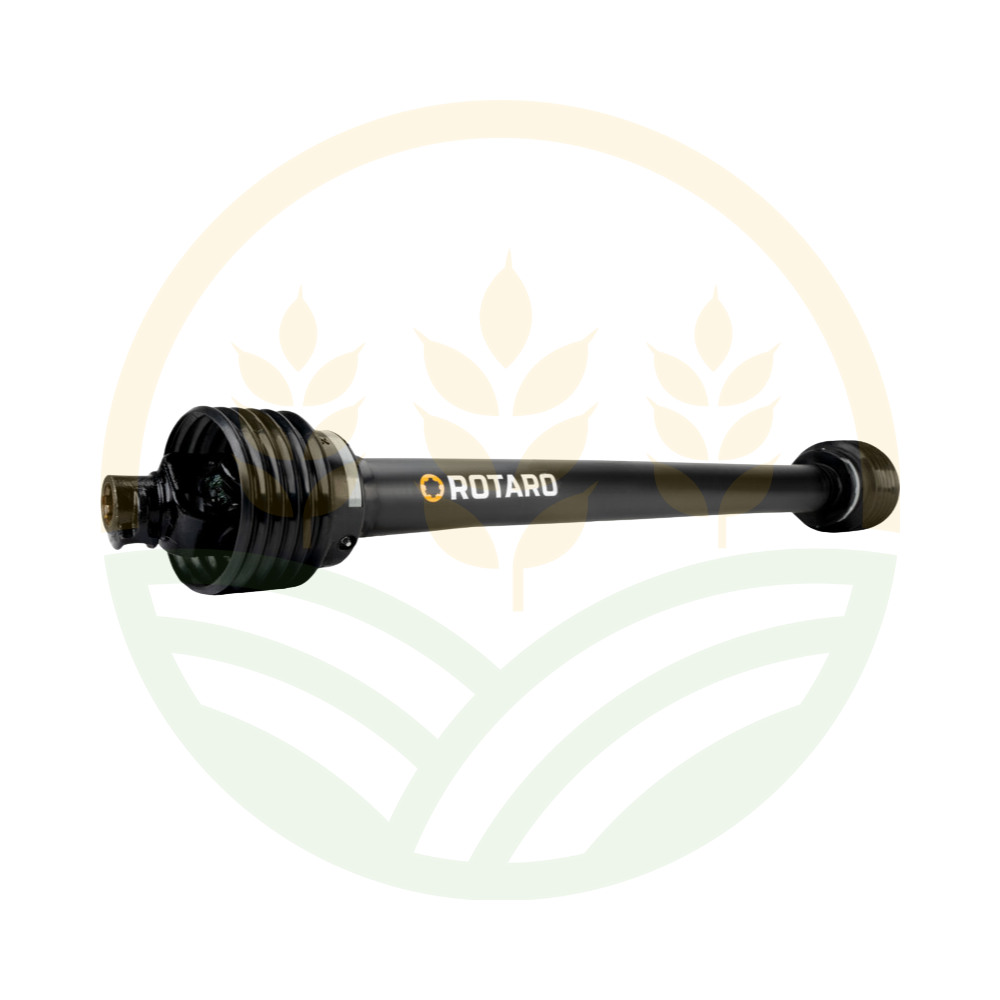

Standard R10 series driveline shaft with a differentiated hitch. It features a triangular profile and a length of 860 mm, and comes with usage and maintenance instructions. The transmissible power is up to 21 hp (15 kW) at 540 rpm and up to 32 hp (24 kW) at 1000 rpm. The net weight is 7.67 kg.
Want to be notified?
Leave your email: we will notify you as soon as it is back in stock.
| Code | PTOR10TPPCS1PPCS2860 |
| Length (Lz) | 860 mm |
| Profile A/B | 1 3/8" 6 teeth / 6x21x25 |
| Cross dimensions | 22 x 54 mm |
| Profile tube | 3.5 x 26.6 mm (inner) / 2.5 x 32.4 mm (outer) |
| Net weight | 7.67 kg |
| EAN Code | 4059139529018 |
| Performance | |
|---|---|
| Clutch | Without |
| Power at 540 rpm | 21 hp / 15 kW |
| Torque at 540 rpm | 273 Nm |
| Power at 1000 rpm | 32 hp / 24 kW |
| Torque at 1000 rpm | 228 Nm |
| Comparative models | B1, AB1, G1 |
Usage and maintenance instructions are included.
