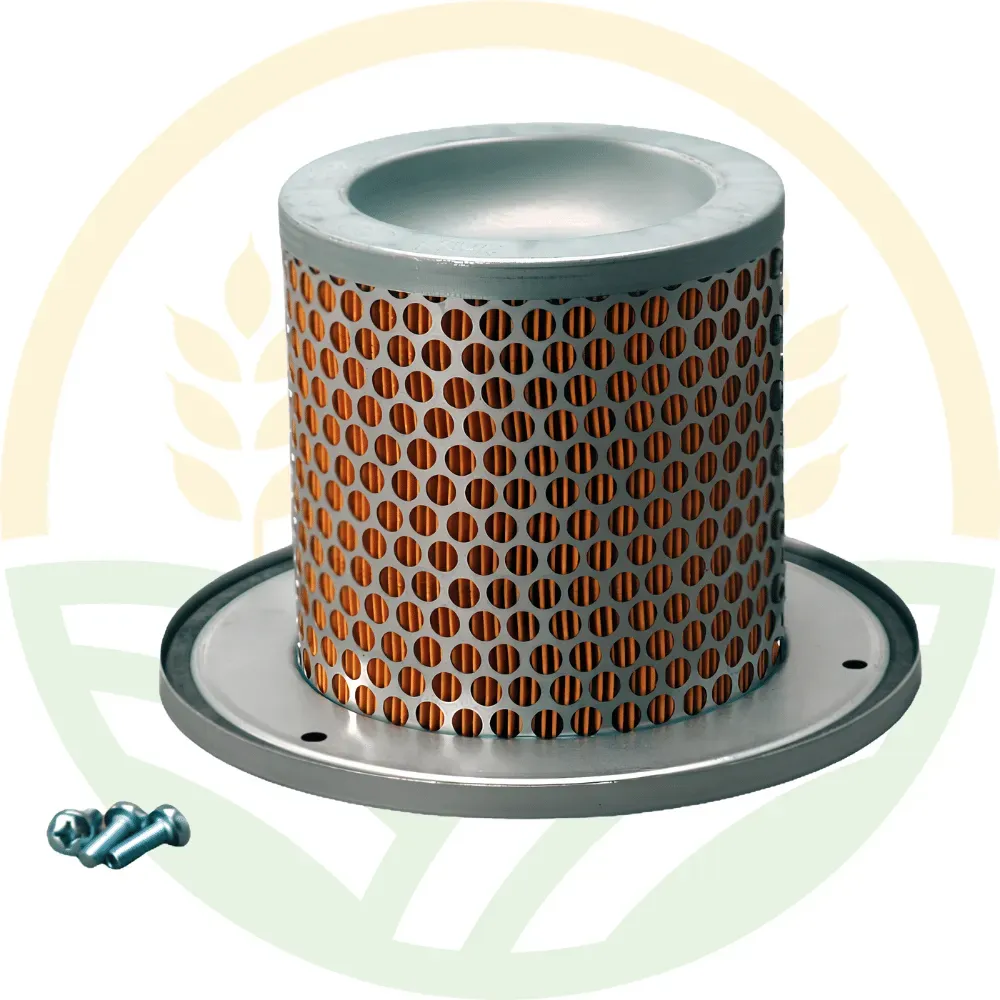

Safety Round Air Filter | Donaldson P783501
Donaldson P783501 safety round air filter (OEM equivalent John Deere AL78224 / AL783501) for heavy-duty engines. Acts as a backup filter to protect the engine intake during primary filter maintenance or in the event of primary filter failure. Technical specs: outer diameter 128 mm (5.04"), inner diameter 92 mm (3.62"), length 132.5 mm (5.22"), tested under ISO 5011 standards. Replacement is recommended every three primary filter changes. Delivers full compatibility with John Deere 6000, 6010, and 7200 series tractors (models 6100, 6110, 6200, 6210, 6300, 6310, 6400, 6405, 6410, 6500L, 6510S, L/SE) equipped with 4039D/T, 4045D/T, and 6059T engines.
Fits John Deere Series 6000 / 6000L and 6010 / 6010L / 6010S (+1) · 25 models · See all ↓
P783501AL783501AL78224LXS233CAF78350194528FC986LA1680
- Fast and tracked deliveriesthroughout Europe
- Easy returnswithin 14 days
- Secure paymentPayPal & cards
Genuine Donaldson (P783501) round secondary safety air filter. High-performance safety element featuring an outer diameter of 128 mm, an inner diameter of 92 mm, and a length of 132.5 mm. Designed to act as a back-up to the primary filter and protect the clean air side during maintenance on John Deere agricultural tractors.
Technical data and specifications
| Manufacturer Code | P783501 |
| Filter Type / Style | Secondary Air Filter (Safety Element) / Round |
| Outer Diameter | 128 mm (5.04 in) |
| Inner Diameter | 92 mm (3.62 in) |
| Length / Height | 132.5 mm (5.22 in) |
| Efficiency Test Standard | ISO 5011 |
| Key Cross References & OE | JOHN DEERE: AL783501, AL78224 | KNECHT: LXS233 | VM: CAF783501 | AMERICAN PARTS: 94528 | BIG A: 94528 | GPC: FC986 | KRALINATOR: LA1680 |
Key Macro-Applications
Specific secondary air filter highly compatible with the following John Deere tractors: 6000 / 6000L Series: 6100, 6200, 6200L, 6210, 6210L, 6300, 6300L, 6400, 6400 SE, 6400L, 6405, 6500, 6500L. 6010 / 6010L / 6010S Series: 6010, 6100 SE, 6110, 6110L, 6310, 6310L, 6310S, 6410, 6410L, 6510L, 6510S. 7000 Series: 7200 (John Deere 6059T Engine).
Why choose Donaldson
- Protection & Back-up: Perform two functions: serve as a back-up to the primary filter and protect the engine during primary filter servicing or in case of damage or improper installation.
- Contaminant Barrier: Prevent airborne contaminants from entering the clean side of the intake system during primary filter replacement.
- Early Warning System: Designed to plug quickly if contamination bypasses the main filter, alerting operators to an issue.
- Service Interval Guidance: It is recommended to replace safety filters every three primary filter changes, unless a primary filter failure has occurred.
Compatibility 25 models
John Deere · Serie 6000 / 6000L 13 models
- 6100
- 6200
- 6200L
- 6210
- 6210L
- 6300
- 6300L
- 6400
- 6400 SE
- 6400L
- 6405
- 6500
- 6500L
John Deere · Serie 6010 / 6010L / 6010S 11 models
- 6010
- 6100 SE
- 6110
- 6110L
- 6310
- 6310L
- 6310S
- 6410
- 6410L
- 6510L
- 6510S
John Deere · Serie 7000
- 7200
Other notes
John Deere: Filtro aria secondario specifico ad altissima compatibilità per i seguenti trattori John Deere:
No model with this name in the list.
Can't find your tractor? Send us the model and serial number: we will check. Check with us
Product sheet
| Code | P783501 Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Donaldson |
| Category | John Deere (Air Filters) |
| Weight | 0,63 Kg |
