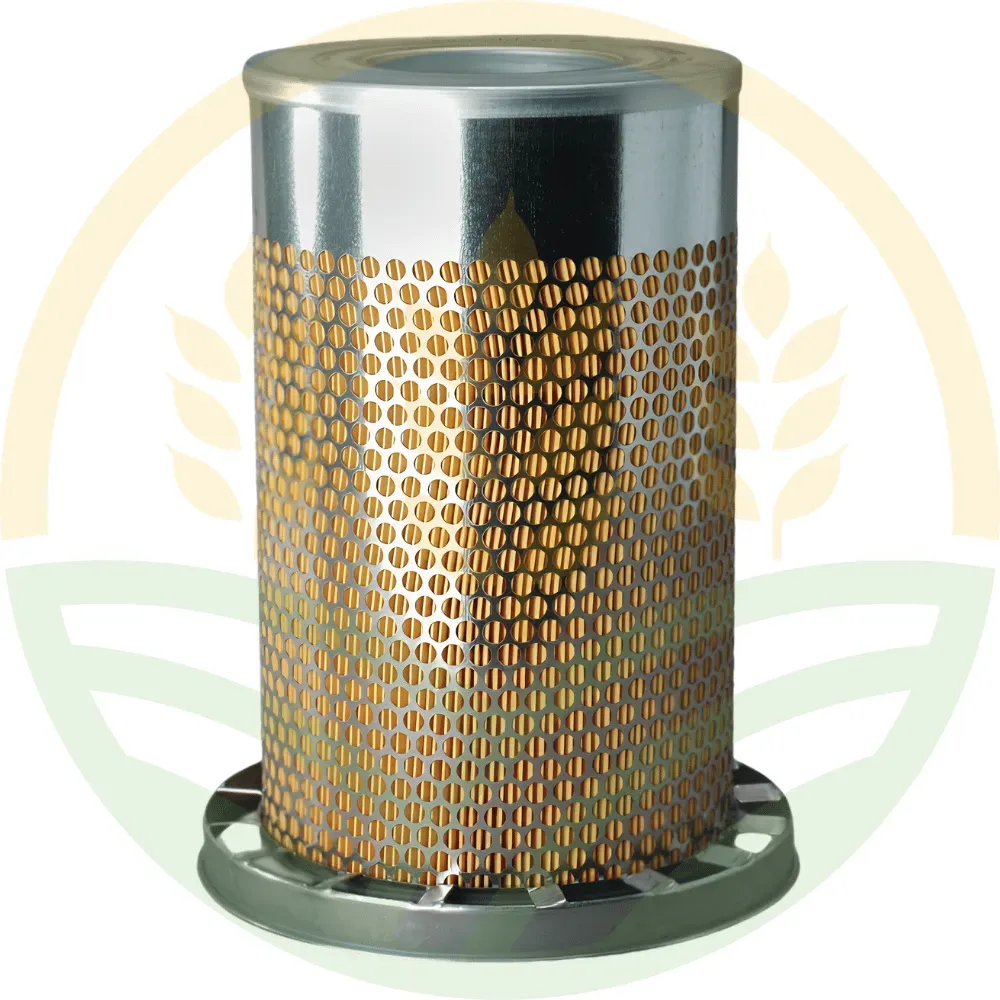

Primary Round Air Filter | Donaldson P783500
Donaldson P783500 primary round air filter (OEM equivalent John Deere AL78223 / AL783500) for heavy-duty engines. Designed with an airtight heavy-duty seal, corrosion-resistant steel liners, and Pleatloc™ technology for uniform pleat spacing to maximize air flow and service life. Specs: OD 184.8 mm, ID 91.4 mm, length 313 mm, ISO 5011 tested. Fully compatible with John Deere 6000, 6010, and 7200 series tractors (models 6100, 6200, 6300, 6400, 6500L, 6510S, L/SE) fitted with 4039D/T, 4045D/T, and 6059T engines. Ideal replacement filter for optimal air intake maintenance.
Fits John Deere Series 6000 / 6000L and 6010 / 6010L / 6010S (+1) · 25 models · See all ↓
P783500AL78223AL783500LX1138VPD7115CAF78350094527FC980LA16794538454114
- Fast and tracked deliveriesthroughout Europe
- Easy returnswithin 14 days
- Secure paymentPayPal & cards
Genuine Donaldson (P783500) round primary outer air filter. High-grade filter element featuring an outer diameter of 184.8 mm, an inner diameter of 91.4 mm, and a length of 313 mm. Engineered with Pleatloc™ technology and cellulose media to deliver a tight seal, maximum airflow, and ultimate engine protection in heavy-duty applications.
Technical data and specifications
| Manufacturer Code | P783500 |
| Filter Type / Style | Primary Air Filter / Outer / Round |
| Outer Diameter | 184.8 mm (7.28 in) |
| Inner Diameter | 91.4 mm (3.60 in) |
| Length / Height | 313 mm (12.32 in) |
| Efficiency Test Standard | ISO 5011 |
| Key Cross References & OE | JOHN DEERE: AL78223, AL783500 | KNECHT: LX1138 | VAPORMATIC: VPD7115 | VM: CAF783500 | AMERICAN PARTS: 94527 | BIG A: 94527 | GPC: FC980 | KRALINATOR: LA1679 | MAN: 4538454114 |
Key Macro-Applications
Specific primary air filter highly compatible with the following John Deere tractors: 6000 / 6000L Series: 6100, 6200, 6200L, 6210, 6210L, 6300, 6300L, 6400, 6400 SE, 6400L, 6405, 6500, 6500L. 6010 / 6010L / 6010S Series: 6010, 6100 SE, 6110, 6110L, 6310, 6310L, 6310S, 6410, 6410L, 6510L, 6510S. 7000 Series: 7200 (John Deere 6059T Engine).
Why choose Donaldson
- Reliable Tight Seal: Durable gasket compresses against the air cleaner housing to form a leak-free seal.
- High-Efficiency Cellulose Media: Performs consistently across a wide range of heavy-duty engine applications.
- Corrosion-Resistant Steel Liners: Coated, heavy-duty liners support the media during operation and help maximize airflow.
- Pleatloc™ Feature: Ensures uniform pleat spacing and prevents media bunching for longer service life.
Compatibility 25 models
John Deere · Serie 6000 / 6000L 13 models
- 6100
- 6200
- 6200L
- 6210
- 6210L
- 6300
- 6300L
- 6400
- 6400 SE
- 6400L
- 6405
- 6500
- 6500L
John Deere · Serie 6010 / 6010L / 6010S 11 models
- 6010
- 6100 SE
- 6110
- 6110L
- 6310
- 6310L
- 6310S
- 6410
- 6410L
- 6510L
- 6510S
John Deere · Serie 7000
- 7200
Other notes
John Deere: Filtro aria primario specifico ad altissima compatibilità per i seguenti trattori John Deere:
No model with this name in the list.
Can't find your tractor? Send us the model and serial number: we will check. Check with us
Product sheet
| Code | P783500 Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Donaldson |
| Category | John Deere (Air Filters) |
| Weight | 2 Kg |
