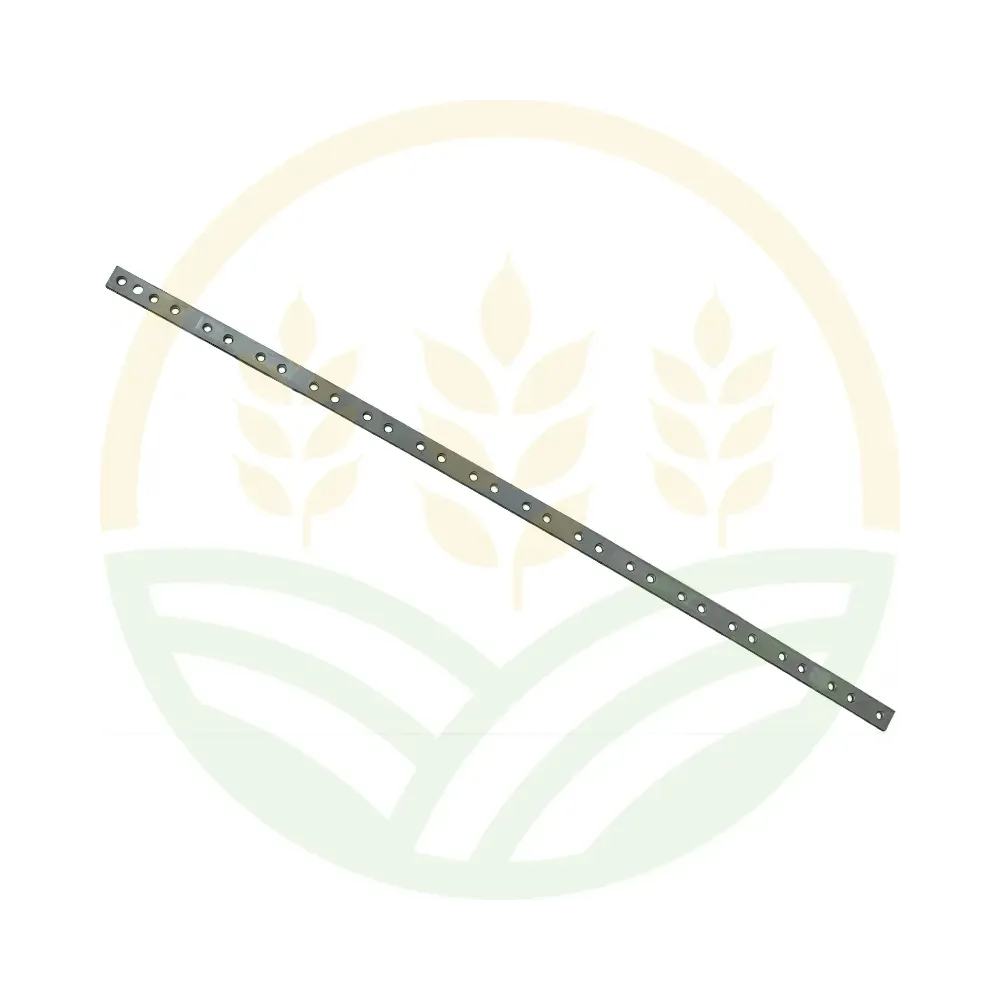

Precision-engineered 94 Series drilled bar, configured with 19 sections and featuring 2 additional threaded holes for enhanced anchoring. Optimized for 6.5 mm rivets with a length of 1.00 meter, this bar ensures superior stability and a secure installation of the cutting assembly. Compatible with BCS 600 - 700 series "Europa" configuration cutter bars. Ideal for repairs requiring maximum mechanical hold.
Fits BCS Series 600-700 · See all ↓
56159021Punched blade support bar, configured for 19 sections (2"), specific for 6.5 mm rivet mounting and featuring 2 threaded holes. A precision component compatible with BCS 600 - 700 series ("Europa" type) motor mowers.
| Compatibility | BCS 600-700 series (Europa) |
| Reference Code | 56159021 |
| Rivet diameter / Threaded holes | 6.5 mm / 2 holes |
| Section count / Series | 19 / 94 |
| Total length | 1.00 meter |
| Net weight | 0.958 kg |
Beyond standard riveting for blade sections, this bar integrates two specific threaded holes for direct mounting of kinematics components or the blade head. This design feature reduces the need for external adapter brackets, providing a more robust fastening and more direct power transmission. Manufactured from tempered steel, it maintains the necessary flexibility to withstand operational stress while offering the geometric precision required for professional-grade cutting.
No model with this name in the list.
Can't find your tractor? Send us the model and serial number: we will check. Check with us
| Code | 46172 Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Aftermarket |
| Category | Guards, Hold-Downs and Guides (BCS 600-700 Series Europa) |
| Weight | 1 Kg |
