⚠ Info Immagine: The image is for demonstration purposes only and may not represent the exact appearance of the product.

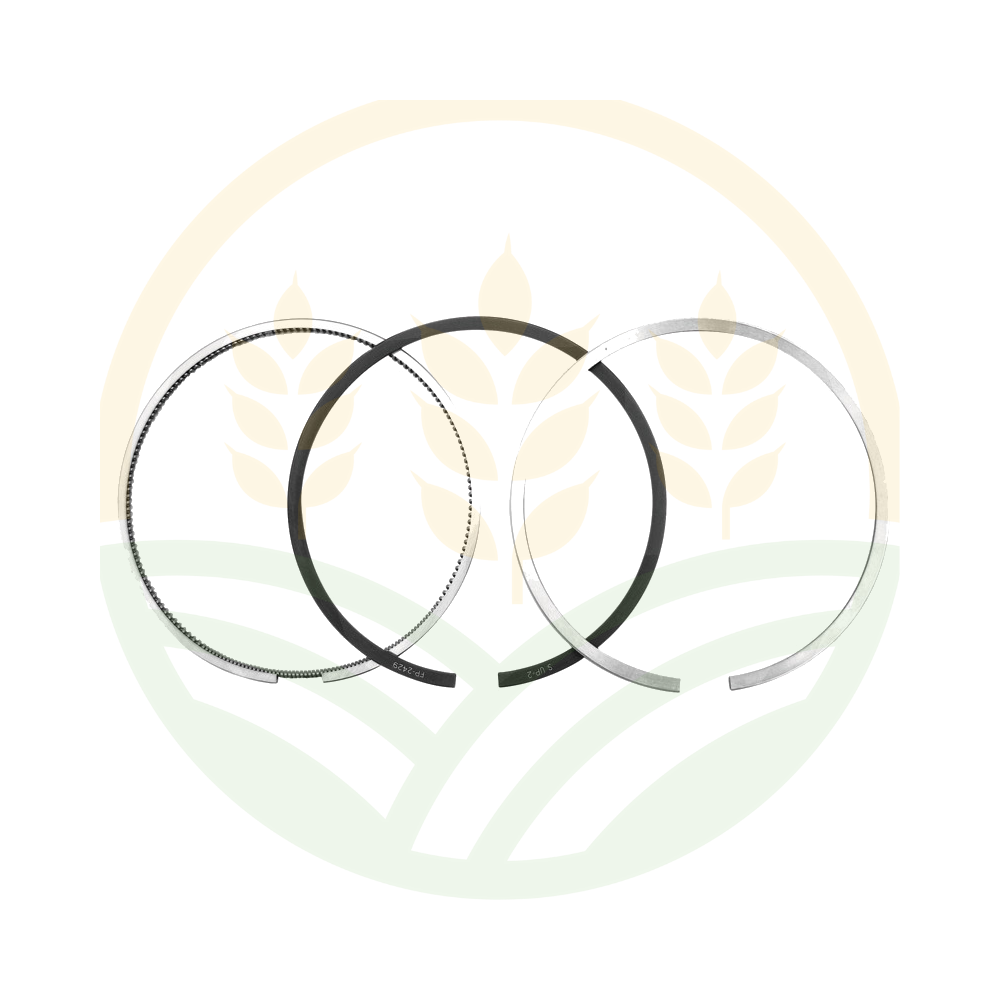

The premium piston ring set (part number 38002932) is a professional engine overhaul kit for Case IH / IHC engines. Designed for 114 mm pistons, it includes 3 rings: a keystone top ring, a 3 mm intermediate ring, and a 4 mm oil control ring, ensuring an optimal seal for Magnum, Steiger, and Axial-Flow series.
Fits Case IH Series AF and Magnum (+2) · See all ↓
A77562IA77562Want to be notified?
Leave your email: we will notify you as soon as it is back in stock.
Genuine GRANIT high-precision piston ring kit. A complete replacement set for a single cylinder, engineered with strict micrometric tolerances and an advanced keystone profile to restore optimal compression sealing and secure effective oil management.
| Product | Piston Ring Kit / Piston Rings Set (Set for 1 cylinder) |
| Nominal Diameter (Bore Ø) | 114 mm |
| Number of Rings per Kit | 3 piston rings |
| Ring Thicknesses & Profile | 3.5 mm - 3 mm (Keystone / Trapezoidal top ring) / 3 mm / 4 mm (Oil scraper) |
| Brand Compatibility | Case IH (International Harvester) |
| Compatible Series & Applications | AF Series (Axial-Flow), Magnum Series, Steiger Series |
| Original Cross References (OEM Ref.) | A77562, IA77562 |
| Weight / EAN Code | 122 g / 4250808793888 |
| Item Code | 38002932 |
The GRANIT piston ring pack (Item code 38002932) is a professional engine replacement component developed specifically for high-performance heavy-duty diesel engines powering Case IH / International Harvester machinery, such as the Magnum, Steiger tractor series, and Axial-Flow (AF) combine harvesters. This performance 3-ring pack features a top compression ring built with a specialized keystone (trapezoidal) cross-section, protecting against ring sticking caused by heavy soot accumulation under intense operational temperatures. Supported by a 3 mm intermediate compression ring and a robust 4 mm oil scraper ring, this kit successfully eliminates internal engine blow-by and oil-burning, returning dependable horsepower output, optimal structural torque, and original thermal efficiency to the rebuilt engine block.
No model with this name in the list.
Can't find your tractor? Send us the model and serial number: we will check. Check with us
| Code | 38002932 Quote it when you write to us: we answer faster. |
|---|---|
| Brand | Granit |
| Category | Case IH (Cylinder Liners & Pistons) |
| EAN | 4250808793888 |
| Weight | 0,12 Kg |
